Name: Dynapac CA1300D Single Drum Vibratory Rollers - Enduraquip
SKU: CA1300D

Dynapac CA1300D Single Drum Vibratory Rollers

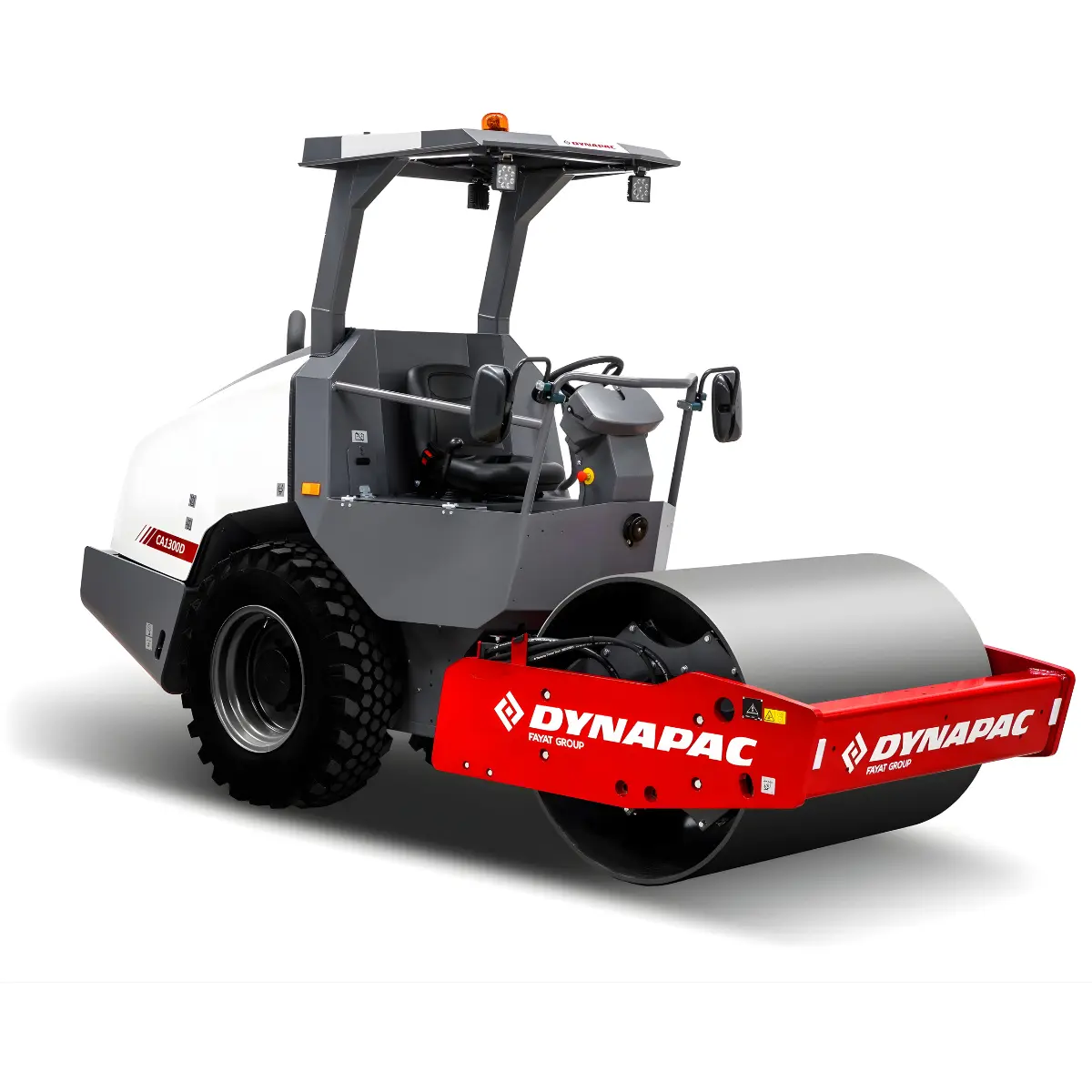

Dynapac CA1300D Vibratory Soil Compactor

The Dynapac CA1300D is a small vibratory soil compactor designed for efficient compaction in pipe trenches, roads, streets, parking lots, and building foundations. Its compact size and excellent maneuverability make it ideal for industrial construction sites, tight spaces, and confined areas, including refilling operations.
The CA1300D handles repair work and steep slopes effectively, providing consistent compaction across various supporting and reinforcement courses.

Description

Masses
Operating mass (incl. ROPS): 10,500 lb
Operating mass (incl. Cab): 11,050 lb
Module mass (front/rear): 4,500 lb / 6,100 lb
Max. operating mass: 12,000 lb

Compaction
Static linear load: 73 lb/in
Nominal amplitude: 0.067 in
Vibration frequency: 2,100 vpm
Centrifugal force: 20,000 lb
Frequency ECO: 1,800 vpm

Traction
Speed range: 0–4 mph
Tire size (12 ply): 12.5–20
Max. theoretical gradeability: 55%
Vertical oscillation: ±9°

Engine / Drive
Manufacturer :Kubota
Model: V3307 CR-TE4
Type: Water-cooled turbo diesel
Rated power, SAE J1995: 75 hp @ 2,200 rpm
Fuel tank capacity: 31 gal

Hydraulic System
Driving: Axial piston pump with variable displacement; axial piston motor with constant displacement; radial piston motor with constant displacement
Vibration: Gear pump/motor with constant displacement
Steering: Gear pump with constant displacement

Brakes
Service brake: Hydrostatic in forward and reverse lever
Parking / Emergency brake: Failsafe multidisc brake in rear axle and front drum motor

Technical Specs

Class	5 ton
Drum/Rolling Width - In	54
Drum/Rolling Width - mm	1,372
Oper. Weight - lb	10,500 – 12,000 (depending on cab/ROPS)
Oper. Weight (incl. Cab) - kg	4,760 – 5,440
Vibration Single	Front
Engine Type	Diesel (Kubota V3307)
Engine HP -	75
Length - in	156
Height - w/w.o ROPS/cab - in	100
