Description
Masses
Operating mass (incl. ROPS): 24,500 lb
Operating mass (incl. Cab): 24,912 lb
Module mass (front/rear): 14,600 lb / 10,400 lb
Max. operating mass: 26,300 lb
Compaction

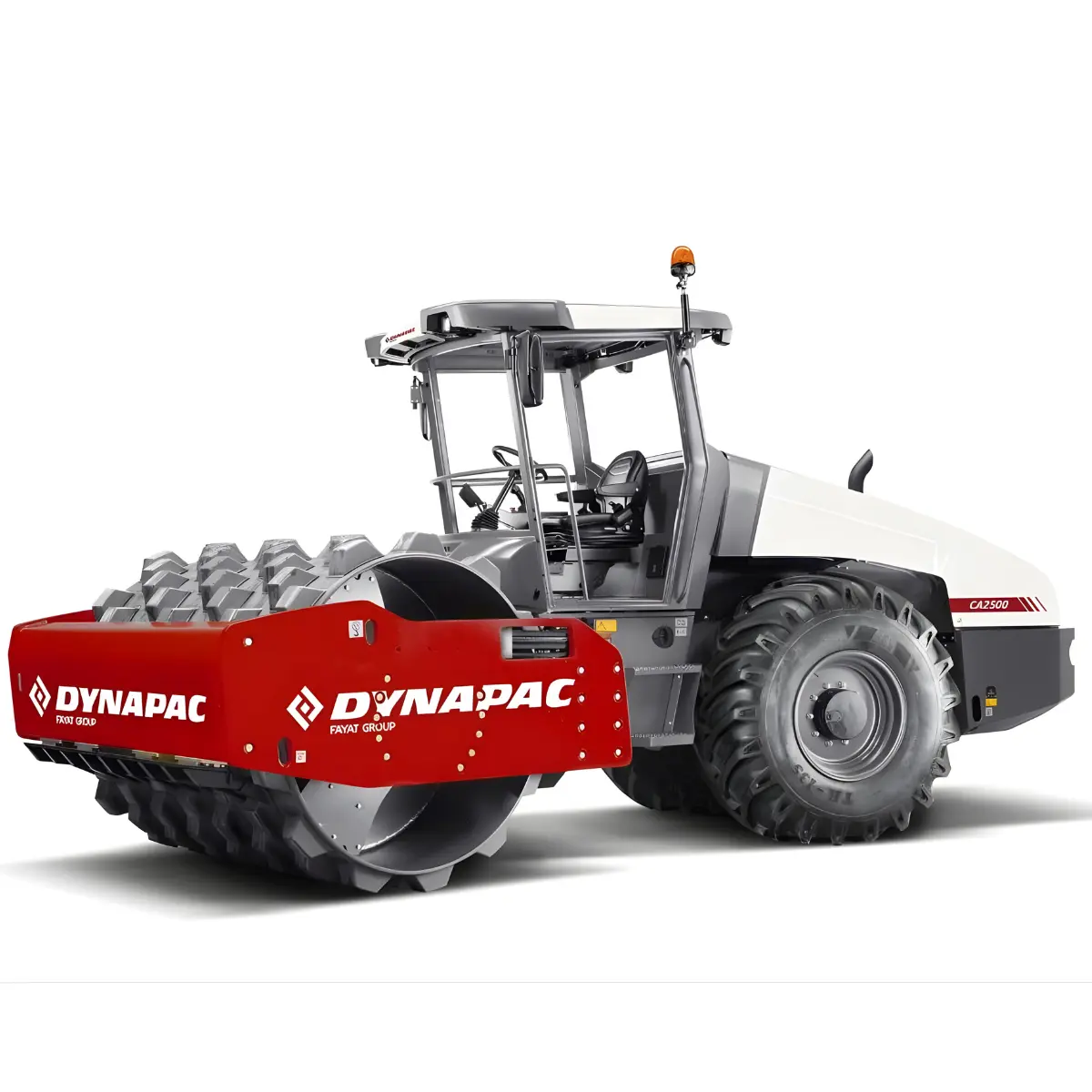

Drum type: Padfoot
Number of pads: 130
Pad area: 22.6 in²
Pad height: 4 in
Static linear load: 174 lbs/in
Nominal amplitude (high/low): 0.079 in / 0.043 in
Vibration frequency (high/low amplitude, SEISMIC manual mode): 1,800 vpm / 1,800 vpm
Centrifugal force (high/low amplitude): 58,450 lb / 33,720 lb
Traction
Speed range: 0 – 7.5 mph
Tire size (8 ply): 23.1 x 26 TR
Max. theoretical gradeability: 55 % (HighClimb)
Vertical oscillation: ±9°
Engine
Manufacturer / Model: Cummins QSF3.8 (IV/T4final)
Type: Water-cooled turbo Diesel
Rated power, SAE J1995: 89 kW (120 hp) @ 2,200 rpm
Fuel tank capacity: 67 gal
DEF tank capacity: 5 gal
Hydraulic System
Driving: Hydrostatic
Vibration: Hydrostatic
Steering: Hydrostatic
Brakes
Service brake: Hydrostatic in forward and reverse lever
Parking / Emergency brake: Failsafe multidisc brake in drum gear box and rear axle
