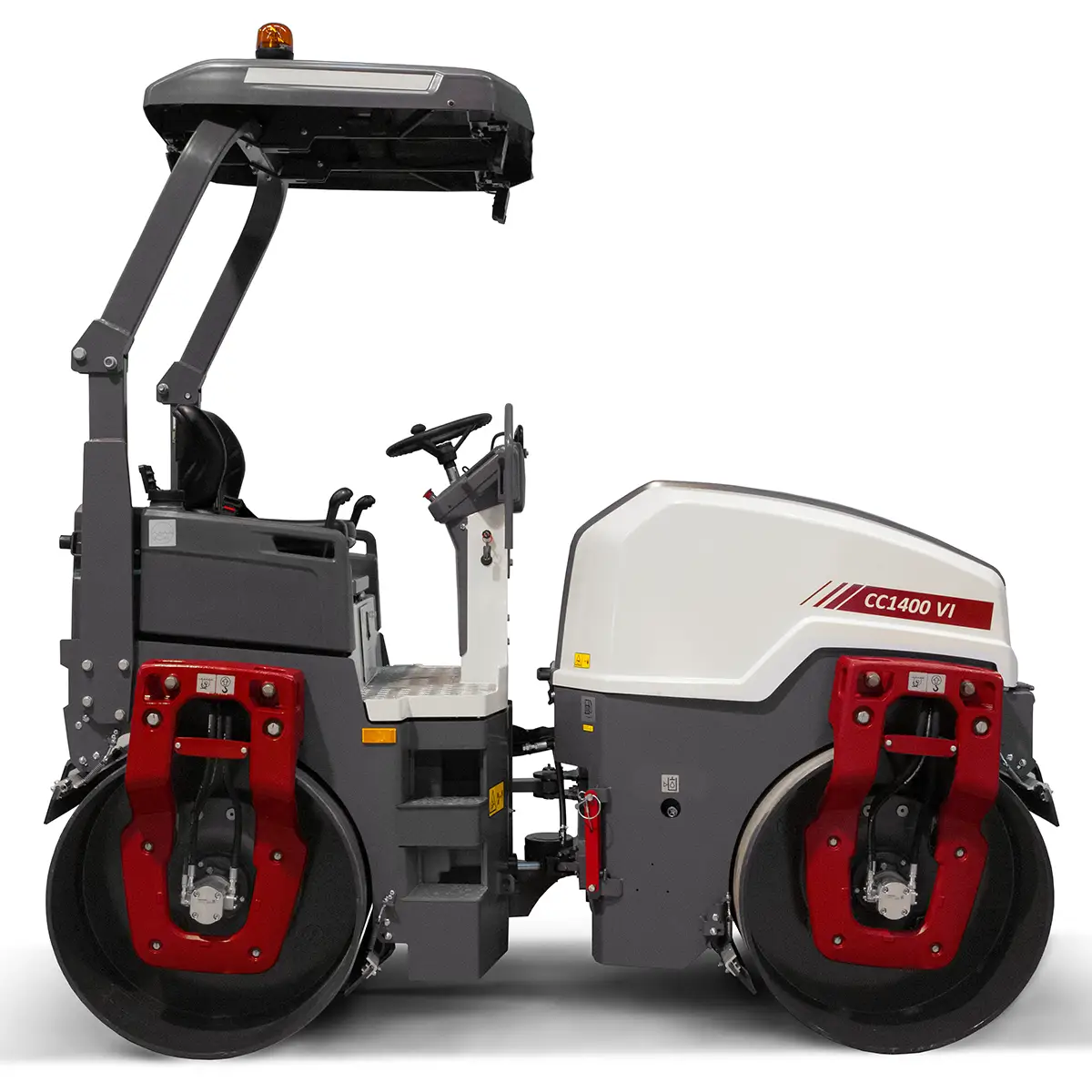

Dynapac CC1400 VI Double Drum Vibratory Roller

Dynapac CC1400 VI Double Drum Vibratory Roller

The Dynapac CC1400VI is a medium-class asphalt roller with a drum width of 54 inches. This machine features a reliable Kubota diesel engine, which, combined with its large drum diameter and hydrostatic drive with series-connected motors, ensures excellent accessibility and strong hill-climbing performance.

It is ideal for medium- to large-scale compaction projects such as pavements, streets, roads, and parking areas. The Dynapac CC1400VI comes equipped with vibration on both drums for efficient, uniform compaction and superior surface finish.

Request a Quote
SKU: CC1400 VI Categories: , Tags: , , Brand:

Description

Masses
Max. Operating mass: 11,300 lbs
Operating mass (incl. ROPS): 9,500 lbs
Module mass (front/rear): 4,600 lbs / 4,900 lbs

Traction
Speed range: 0–5.6 mph
Vertical oscillation: ±10°
Max. theoretical gradeability: 37%

Engine
Manufacturer: Kubota
Model: Kubota V2403-CR E4B (T4)
Type: Water cooled diesel engine
Rated power, SAE J1995: 50 hp @ 2700 rpm
Fuel tank capacity: 16 gal

Hydraulic System
Driving axial piston pump with variable displacement. Two radial piston motors with constant displacement.
Vibration: Gear pump/motors with constant displacement.
Steering: Gear pump with constant displacement.
Service Brake: Hydrostatic in forward and reverse lever.
Parking / Emergency Brake: Failsafe multidisc brake in both drums.

Technical Specs

Class - ton

Drum/Rolling Width - in

54
Drum/Rolling Width - mm

1,380
Operating weight - lb

9,500
Operating weight - kg

4,300
Vibration

Dual
Engine Type

Diesel
Engine HP

50
Length

Height
