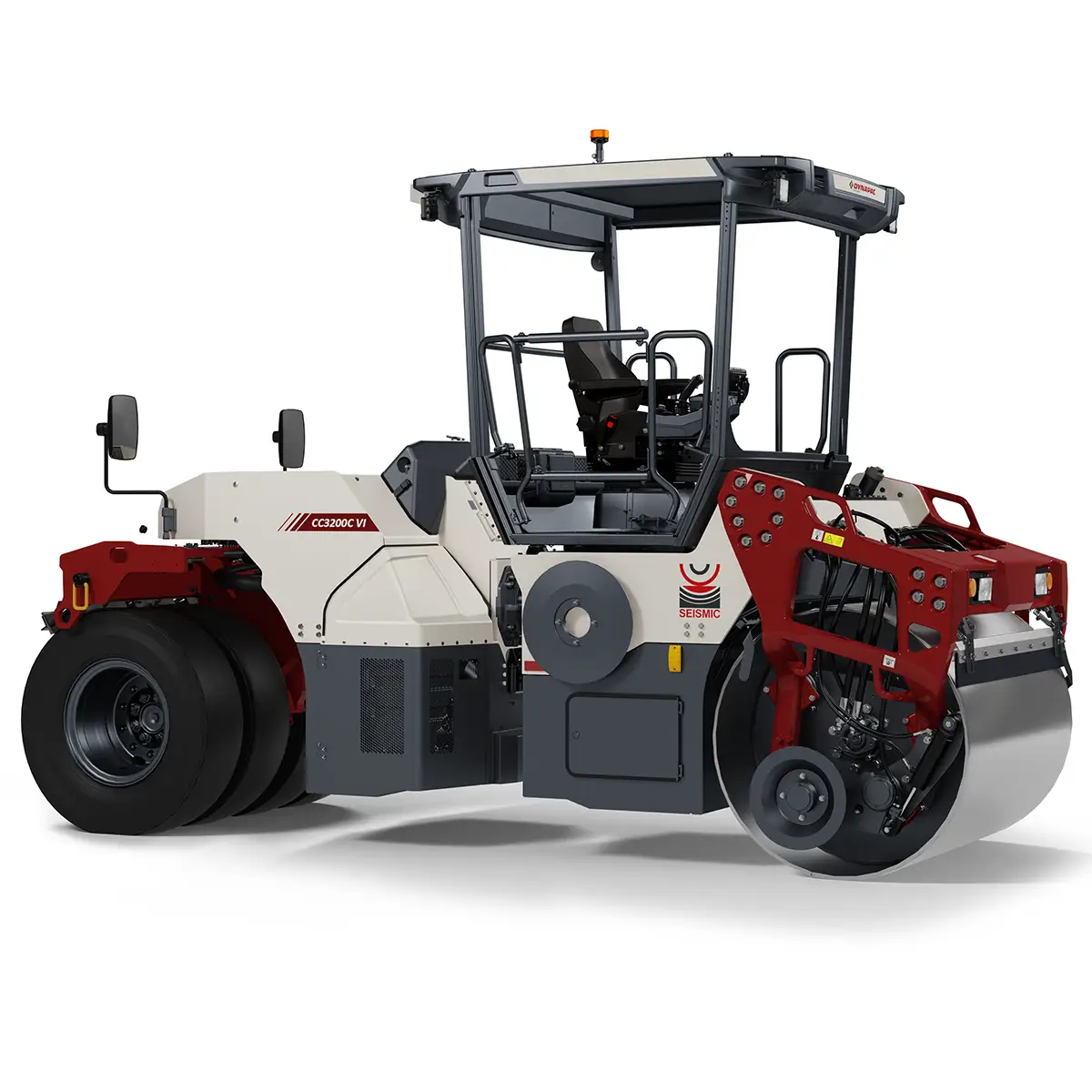

Dynapac CC3200C VI Combi Roller

Dynapac CC3200C VI Combi Roller

The Dynapac CC3200C VI is a large-class asphalt roller with a drum width of 66 inches. This machine features a combination configuration, with a steel drum at the front and four wide tires at the rear, providing exceptional traction, stability, and compaction versatility. Powered by a reliable Deutz turbo diesel engine and equipped with a hydrostatic drive with series-connected radial piston motors, the CC3200C VI delivers outstanding accessibility and strong hill-climbing performance.

It is ideal for large-scale compaction projects such as highways, main roads, and large parking areas. The Dynapac CC3200C VI features vibration on the front drum for efficient and uniform compaction, while the rear tires ensure a dense, smooth, and well-sealed surface suitable for high-demand paving applications.

Request a Quote
SKU: CC3200C Category: Tags: , , Brand:

Description

Masses
Max. operating mass: 18,600 lbs
Operating mass (incl. ROPS): 17,400 lbs
Module mass (front/rear): 9,500 lbs / 7,900 lbs

Traction
Speed range: 0–7.5 mph
Vertical oscillation: ±6°
Max. theoretical gradeability: 48 %

Engine
Manufacturer: Deutz
Model: TCD 3.6 HT T4f
Type: Water-cooled turbo diesel
Rated power, SAE J1995: 55 kW (74 hp) @ 2,200 rpm
Fuel tank capacity: 34 gal

Hydraulic System
Driving: Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement.
Vibration : Axial piston pump with variable displacement. Axial piston motor with constant displacement.
Steering :  Gear pump with constant displacement.
Service Brake: Hydrostatic in forward and reverse lever.
Parking / Emergency Brake: Failsafe multidisc brake in both drums.

Compaction CE
Centrifugal force (high / low amplitude): 74 kN / 45 kN
Vibration frequency (high / low amplitude): 45 Hz / 53 Hz

Combi Configuration
Front: 1 vibratory steel drum
Rear: 4 smooth pneumatic tires

Technical Specs

Class - ton

Compaction Width – In

Compaction Width – mm

Oper. Weight - lb

Oper. Weight - kg

Vibration

Engine Type

Engine HP

Length

Height
