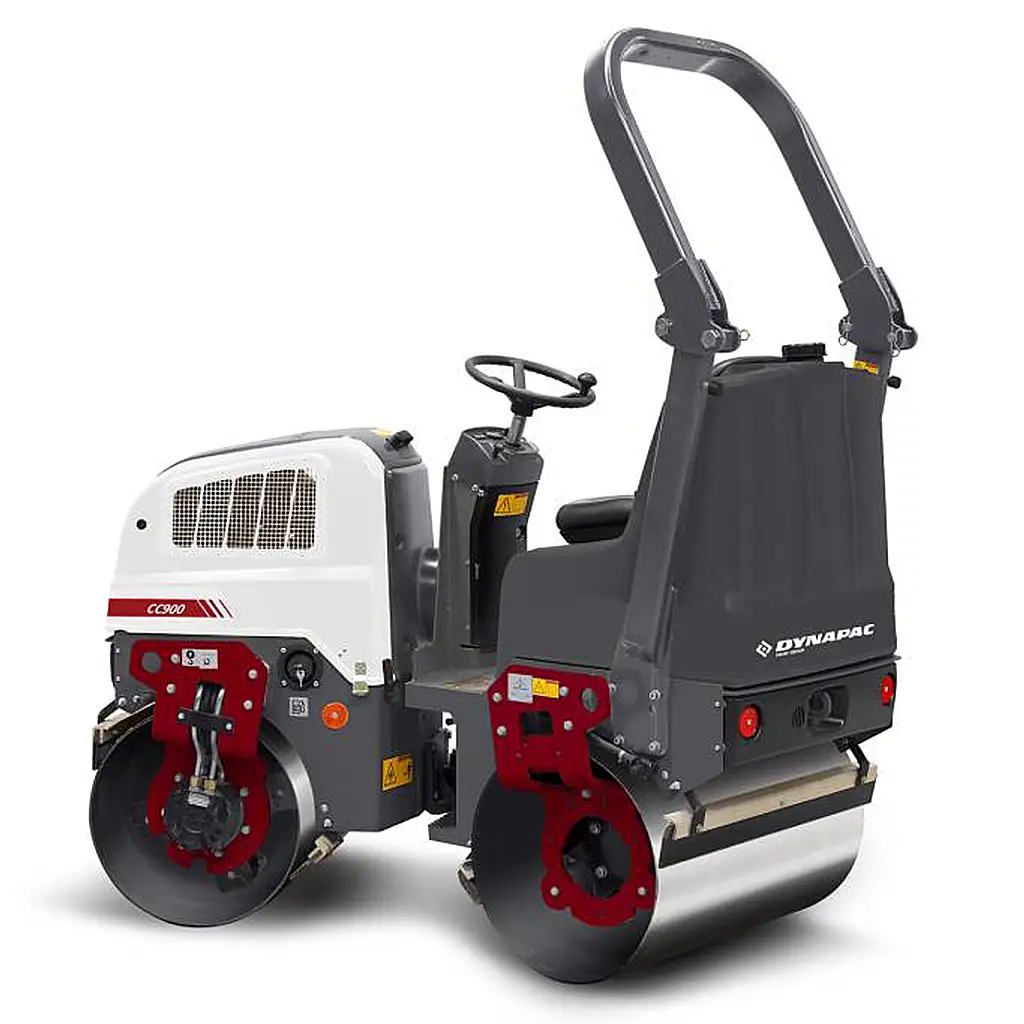

Dynapac CC900G Double drum vibratory roller

Dynapac CC900G Double drum vibratory roller

The Dynapac CC900G is a small asphalt roller with a drum width of 900 mm. This machine is equipped with a powerful petrol engine, which together with the large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. It’s primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. Dynapac CC900G has vibration on the front drum and a static rear drum.

Request a Quote
SKU: CC900G Categories: , Tags: , , , Brand:

Description

Masses
Max. operating mass: 2,900 lbs
Operating mass: (incl. ROPS) 2,800 lbs

Traction
Speed range: 0-5 mph
Vertical oscillation: ±6°
Max. theoretical gradeability: 35 %

Engine
Manufacturer: Honda
Model: GX630RH QYD
Type: 4-stroke gasoline
Rated power, SAE J1995: 19 hp @ 3000rpm
Fuel tank capacity: 23L

Hydraulic system
Driving: Axial piston pump with variable displacement.
2 radial piston motors with constant displacement.
Vibration: Gear pump/motors with constant displacement.
Steering: Gear pump with constant displacement.
Service brake: Hydrostatic in forward and reverse lever.
Parking/Emergency brake: Failsafe brake in both drums.

Technical Specs

Class

1.5 ton
Drum/Rolling Width - In

35
Drum/Rolling Width - mm

900
Oper. Weight - lb

2750
Oper. Weight - kg

1250
Vibration

Single(Front)
Engine Type

Gas
Engine HP

19
Length

83
Height - w/w.o ROPS/cab

91/62
