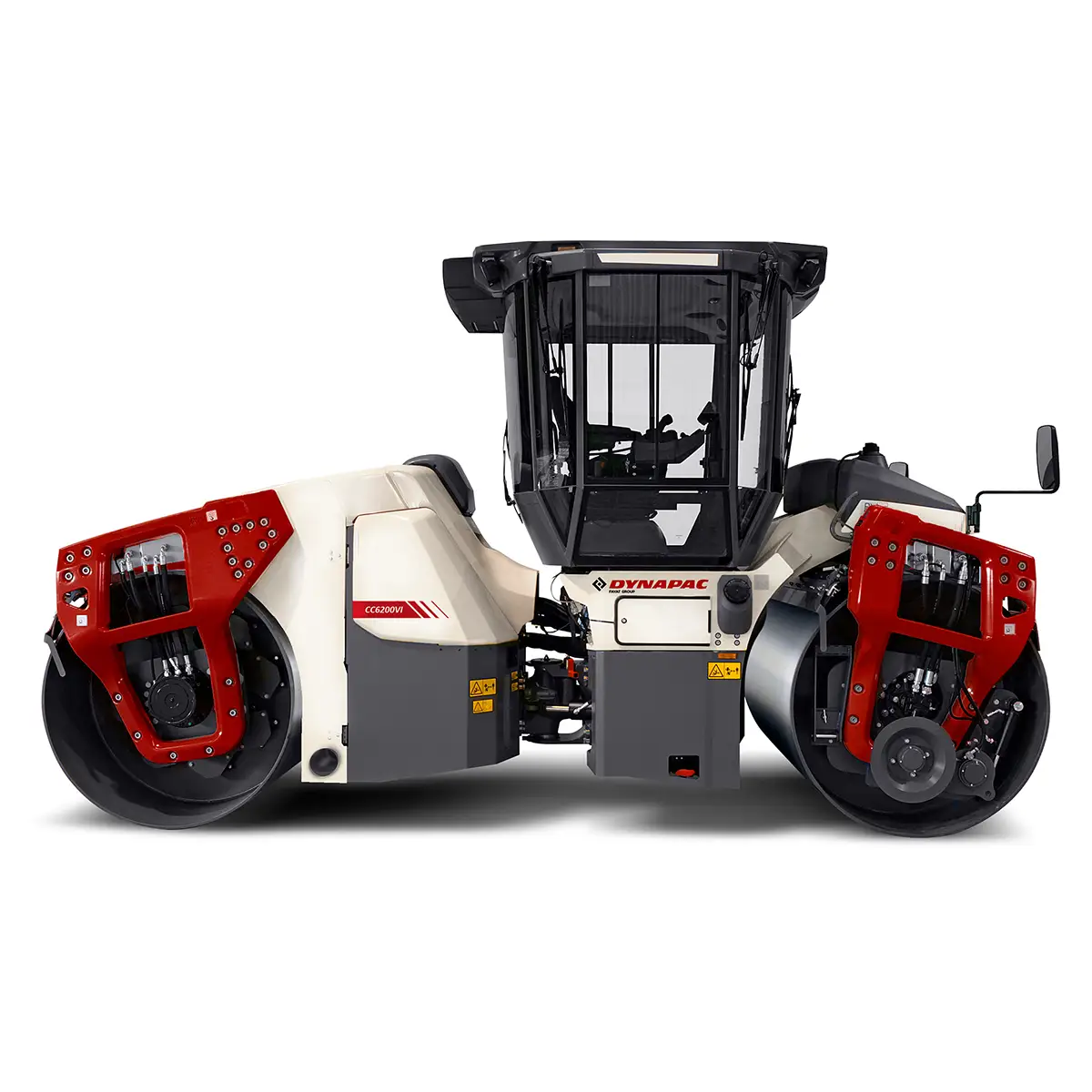

Description
Masses
Max. operating mass: 30,800 lbs
Operating mass (incl. ROPS): 27,300 lbs
Module mass (front/rear): 13,700 lbs / 13,700 lbs
Traction
Speed range: 0–7.5 mph
Vertical oscillation: ±7°
Max. theoretical gradeability: 32%
Engine
Manufacturer: Cummins
Model: QSF 3.8 IV/T4f
Type: Water-cooled turbo diesel
Rated power, SAE J1995: 130 hp (97 kW) @ 2,200 rpm
Fuel tank capacity: 48 gal
DEF tank capacity: 4 gal
Hydraulic System
Driving: Axial piston pump with variable displacement; radial piston motors (2) with variable displacement
Front drum vibration: Axial piston pumps (2) with variable displacement; axial piston motors (2) with constant displacement
Rear drum oscillation: Axial piston motor with constant displacement
Steering: Gear pump with constant displacement
Service Brake: Hydrostatic in forward and reverse lever
Parking / Emergency Brake: Failsafe multidisc brake in both drums
Compaction CE
Centrifugal force (high/low amplitude): 115 kN / 73 kN
Vibration frequency (front drum): 44 Hz / 58 Hz
Oscillation force (rear drum): 34,400 lbs
Oscillation frequency (rear drum): 2,400 vpm
Tangential amplitude: 0.05 in
