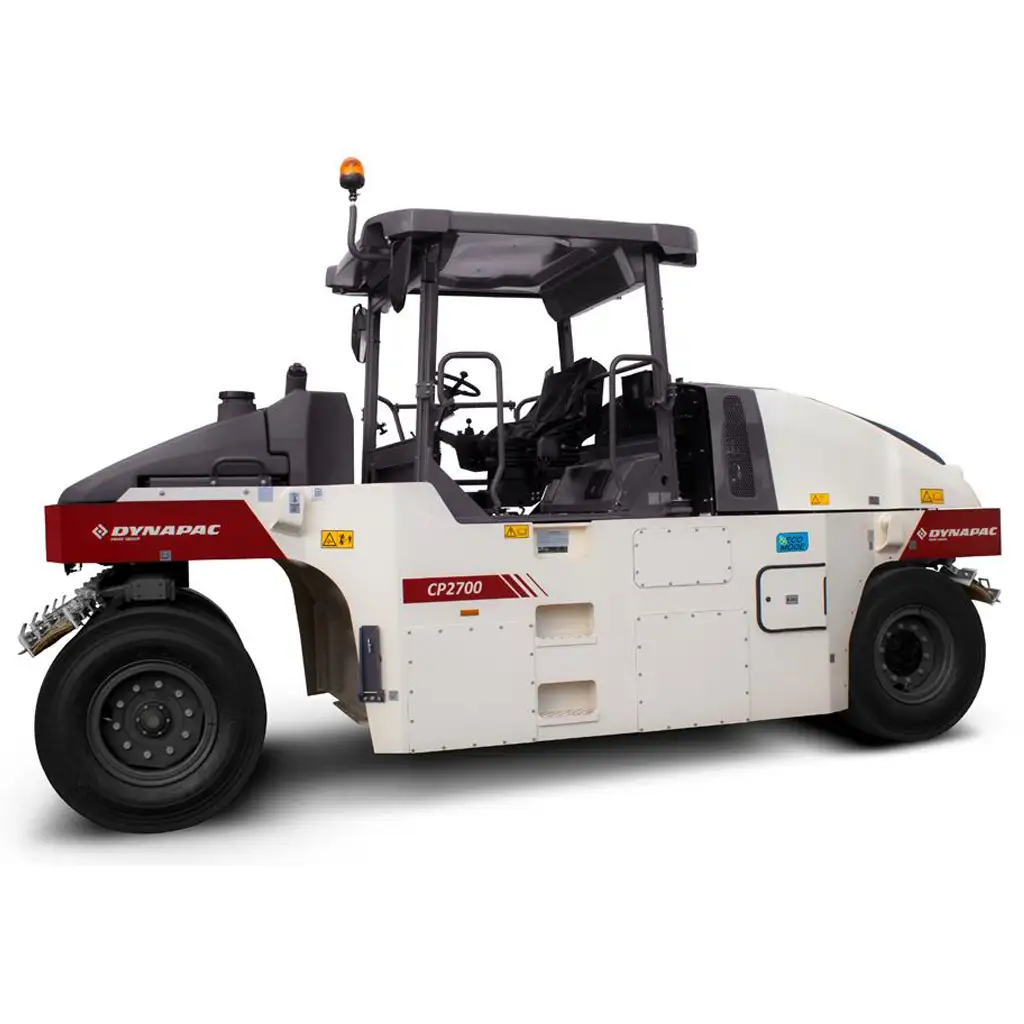

Dynapac CP2700 Pneumatic Tire Roller

Dynapac CP2700 Pneumatic tire roller

The Dynapac CP2700 is a large-class 27-ton pneumatic tyred roller built for high-capacity asphalt compaction, sealing, and chip-sealing applications. With nine wide tyres (five front, four rear) in an overlapping layout, it ensures smooth, uniform surface density and an airtight finish. Its adjustable ballast system enables quick weight variation using water, wet sand, or steel to achieve optimal tyre pressure and contact. Featuring hydrostatic drive, dual-circuit braking, and a swiveling operator station, the CP2700 provides superior control, visibility, and operational safety. Powered by a Cummins engine , it delivers high torque and fuel efficiency for demanding paving projects. Optional systems such as Air-on-the-Run, heat covers, and automatic water control (AWC) enhance its versatility for both asphalt finishing and base compaction.

SKU: CP2700 Categories: , Tags: , , Brand:

Description

Masses
Operating mass (incl. ROPS): 27,300 lb
Mass with wet sand ballast: 43,000 lb
Mass with max. ballast: 59,525 lb

Traction
Transmission: Hydrostatic, direct-drive motors at rear tyres
Speed : 0-12.5 mph

Engine
Manufacturer: Cummins
Model (Tier 4F): QSF 3.8
Rated power, SAE J1995: 120 hp @ 2,200 rpm
Type: Water-cooled turbo diesel
Fuel tank capacity: 55 gal

Hydraulic System
Driving: Axial piston pump with variable displacement; dual variable-displacement motors
Steering: Axial piston pump with variable displacement
Service brake: Dual multidisc brakes on rear wheels, pedal-activated
Parking / Emergency brake: Failsafe multidisc brakes in both gearboxes

Technical Specs

Class

27 ton

Drum/Rolling Width - In

91

Compaction Width (metric) - mm

2,310

Operating Mass (incl. ROPS) - lb

27,300

Mass with Wet Sand Ballast - lb

43,000

Mass with Max Ballast - lb

59,525

Engine Type

Diesel

Engine HP

120 (Tier 4F)

Length

216

Height - w/w.o ROPS/cab - in

118

Number of Tires

9 (5 front / 4 rear, wide tyres with overlap)

Water Tank Capacity - gal

110
