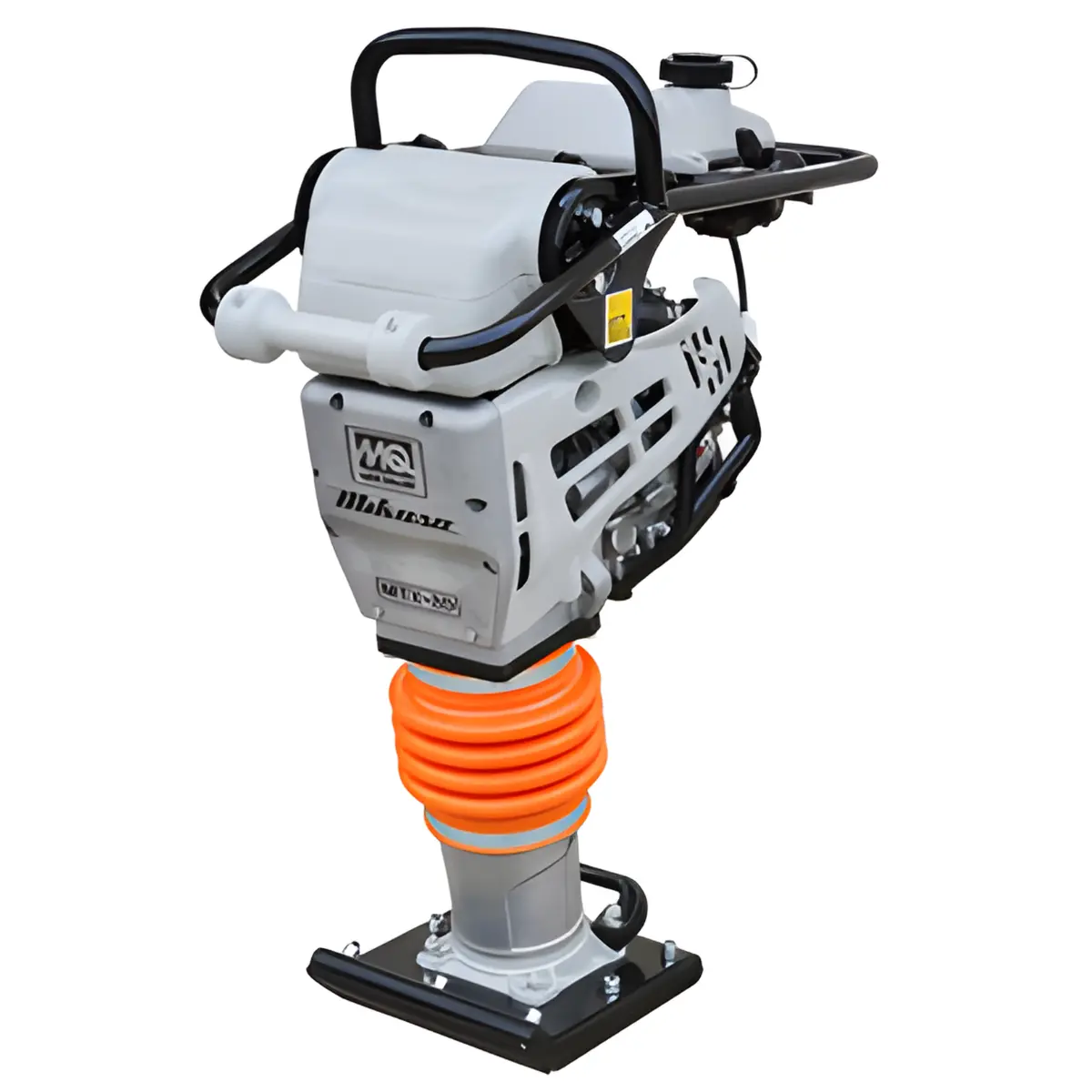

MultiQuip MTX80HDR Rammers

Multiquip’s Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX80HDR is ideal for high productivty with 3,505 lbs. of force combined with a 11.2″ wide shoe. MTX-Series rammers are renowned for performance and ease of operation.

The MTX-Series includes the features most preferred by contractors such as:

– Cyclonic air cleaners that capture 98% of airborne dust particles
– Long-lasting laminated wood and steel shoe
– Low vibration handles for operator comfort
– Combination hour meter/tachometer
– Durable guards to protect the engine from damage
– Redesigned fuel tank to meet EPA standards for evaporative emmissions

SKU: MTX80HDR Category: Tags: , , Brand:

Description

Unit Specifications
Blows Per Min.: Up to 678*
Impact Force: 3,505 lbf / 15.6 kN
Shoe Jump Height: 3.1 in / 79 mm
Shoe Dimensions (LxW): 13.4 x 11.2 in / 340 x 285 mm
Travel Speed Per Min.: 49.2 ft / 15 m
Fuel Tank Capacity: 2.7 qt / 2.5 L
Notes: *Variable speed impact — up to maximum impact force.

Dimensions & Weights
Overall Length: 31.0 in / 788 mm
Overall Width: 14.4 in / 365 mm
Overall Height: 40.4 in / 1027 mm
Operating Weight: 181 lb / 82 kg

Engine Specifications
Engine Make/Model: Honda GXR120
Start Method: Recoil
Engine Power: 3.6 HP / 2.7 kW
Engine RPM: 4100
Fuel Type: Gasoline
