Dynapac CC1400C VI Combi Roller

Dynapac CC1400C VI Combi Roller

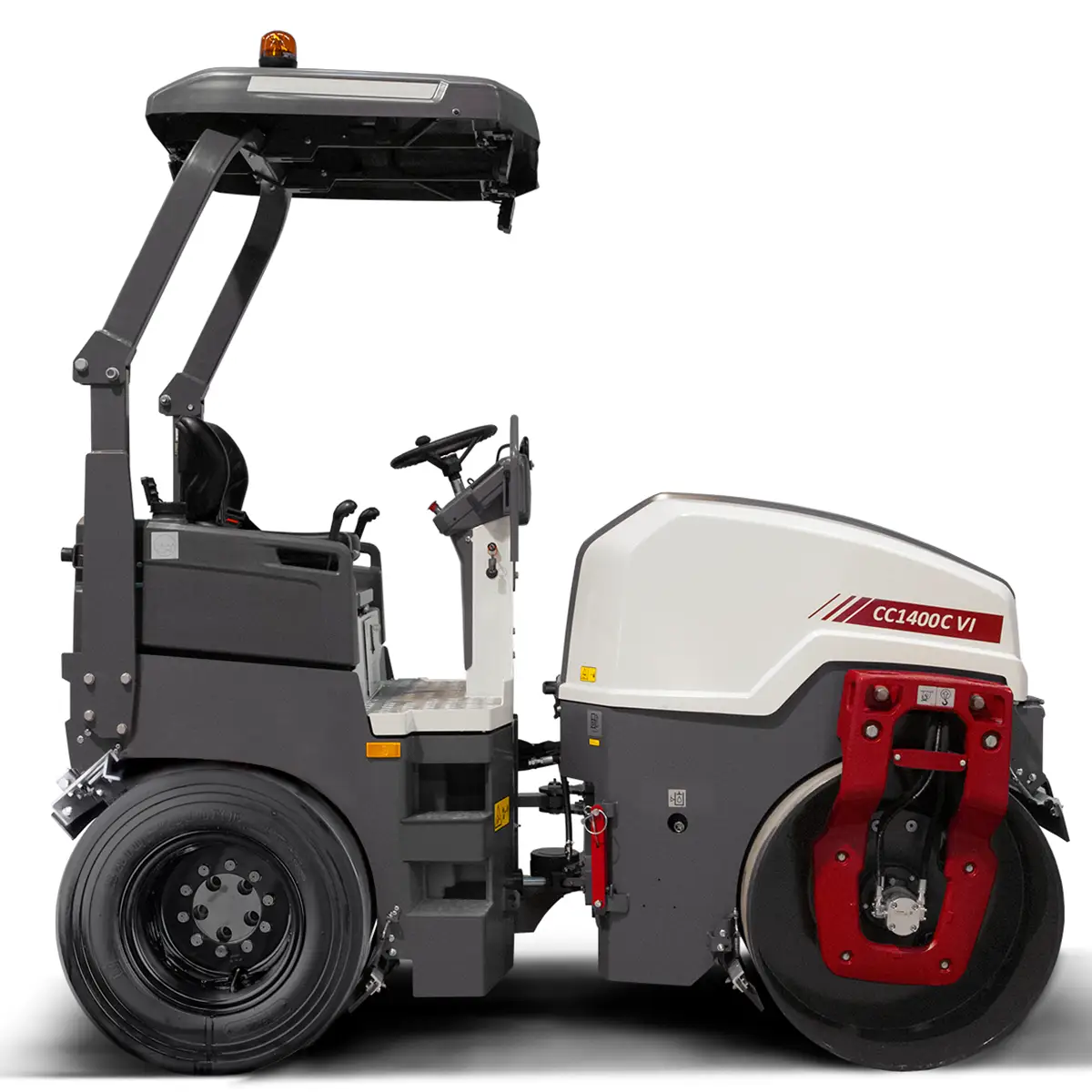

The Dynapac CC1400C VI is a medium-class asphalt roller with a drum width of 54 inches. This machine features a combination configuration, with a steel drum at the front and four wide tires at the rear, providing excellent traction, stability, and compaction versatility. Powered by a reliable Kubota diesel engine, and combined with its large drum diameter and hydrostatic drive with series-connected radial piston motors, the CC1400C VI delivers excellent accessibility and strong hill-climbing performance.

It is ideal for medium- to large-scale compaction projects such as pavements, streets, roads, and parking areas. The Dynapac CC1400C VI comes with vibration on the front drum, ensuring efficient and uniform compaction, while the rear tires help achieve a smooth, finished surface.

Request a Quote
SKU: CC1400C VI Categories: , Tags: , , Brand:

Description

Masses
Max. operating mass: 10,600 lbs
Operating mass (incl. ROPS): 8,600 lbs
Module mass (front/rear): 4,600 lbs / 4,000 lbs

Traction
Speed range: 0–6 mph
Vertical oscillation: ±10°
Max. theoretical gradeability: 39%

Engine
Manufacturer: Kubota
Model: Kubota V2403-CR E4B (T4)
Type: Water cooled diesel engine
Rated power, SAE J1995: 50 hp @ 2700 rpm
Fuel tank capacity: 16 gal

Hydraulic System
Driving axial piston pump with variable displacement. Two radial piston motors with constant displacement.
Vibration:Gear pump/motors with constant displacement.
Steering:Gear pump with constant displacement.

Service Brake:Hydrostatic in forward and reverse lever.

Parking / Emergency Brake:Failsafe multidisc brake in both drums.

Configuration
Front: Steel drum with vibration
Rear: Four wide tires for traction and smooth finishing

Technical Specs

Class - ton

Drum/Rolling Width - in

Drum/Rolling Width - mm

Oper. Weight - lb

Oper. Weight - kg

Vibration

Engine Type

Engine HP

Length

Height
