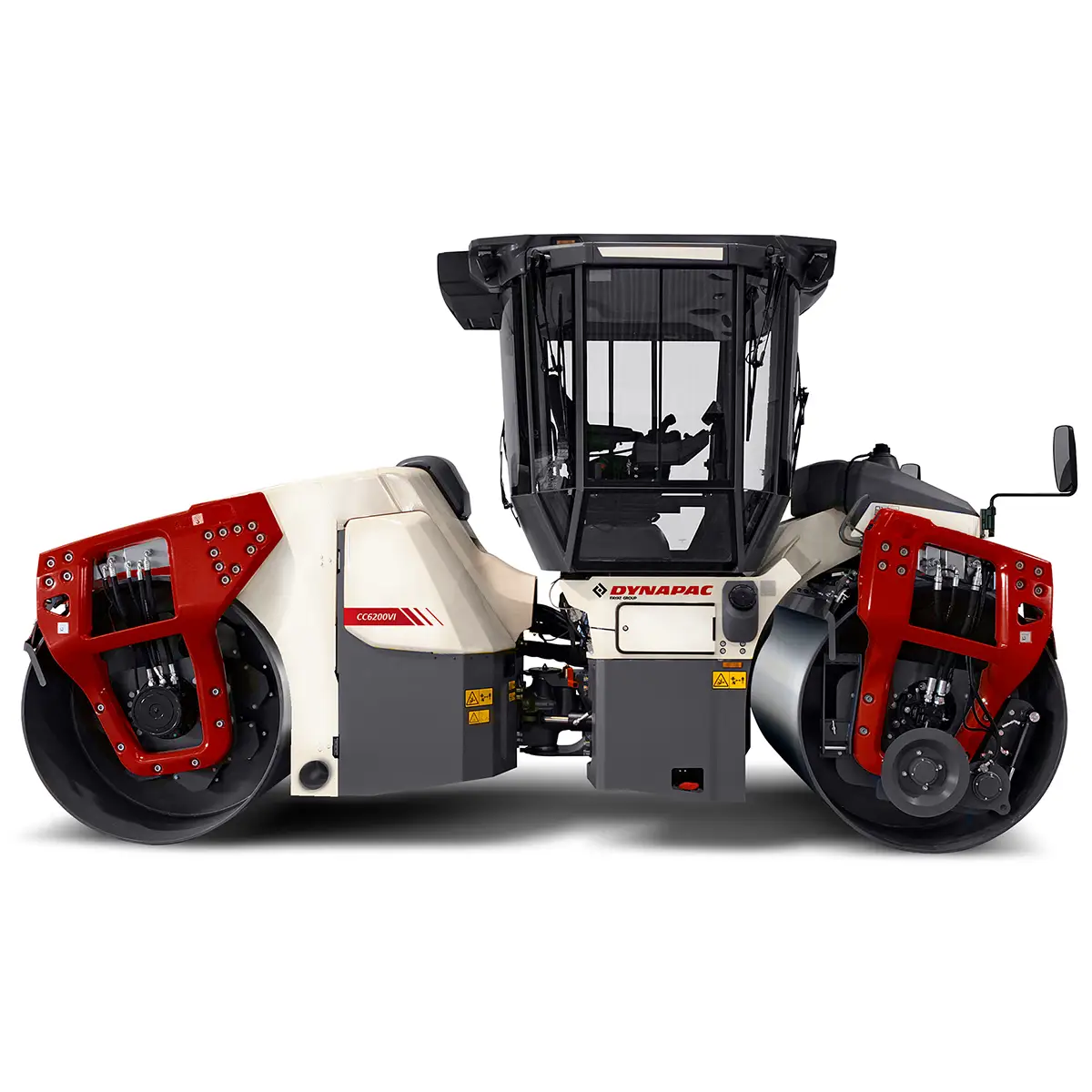

Description
Masses
Max. operating mass: 32,600 lbs
Operating mass (incl. ROPS): 25,800 lbs
Module mass (front/rear): 13,000 lbs / 12,800 lbs
Traction
Speed range: 0–7.5 mph
Vertical oscillation: ±7°
Max. theoretical gradeability: 34 %
Engine
Manufacturer: Cummins
Model: QSF 3.8 IV/T4f
Type: Water cooled turbo diesel
Rated power, SAE J1995: 130 hp (97 kW) @ 2,200 rpm
Fuel tank capacity: 48 gal
DEF tank capacity: 4 gal
Hydraulic System
Driving: Axial piston pump with variable displacement. Radial piston motors (2) with variable displacement.
Vibration: Front drum – axial piston pump with variable displacement. Rear drum – axial piston motor with constant displacement.
Steering: Gear pump with constant displacement.
Service Brake: Hydrostatic in forward and reverse lever.
Parking / Emergency Brake: Failsafe multidisc brake in both drums.
Compaction CE
Centrifugal force (high/low amplitude): 106 kN / 68 kN
Vibration frequency (front drum): 44 Hz / 58 Hz
Oscillation force (rear drum): 32,150 lbs
Oscillation frequency (rear drum): 2,400 vpm
Tangential amplitude: 0.05 in
