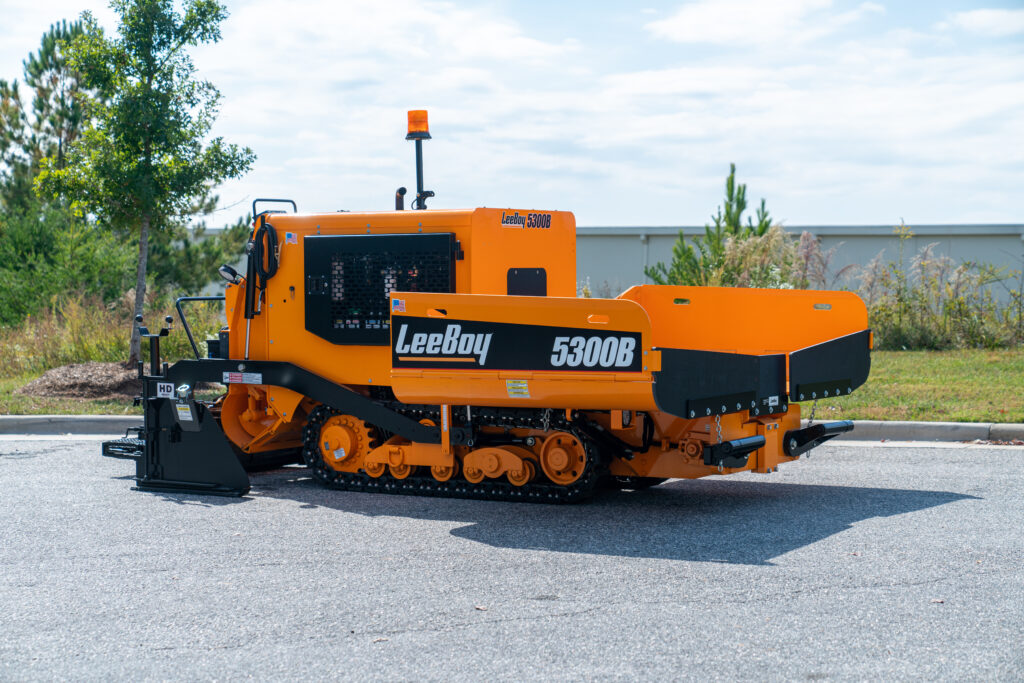

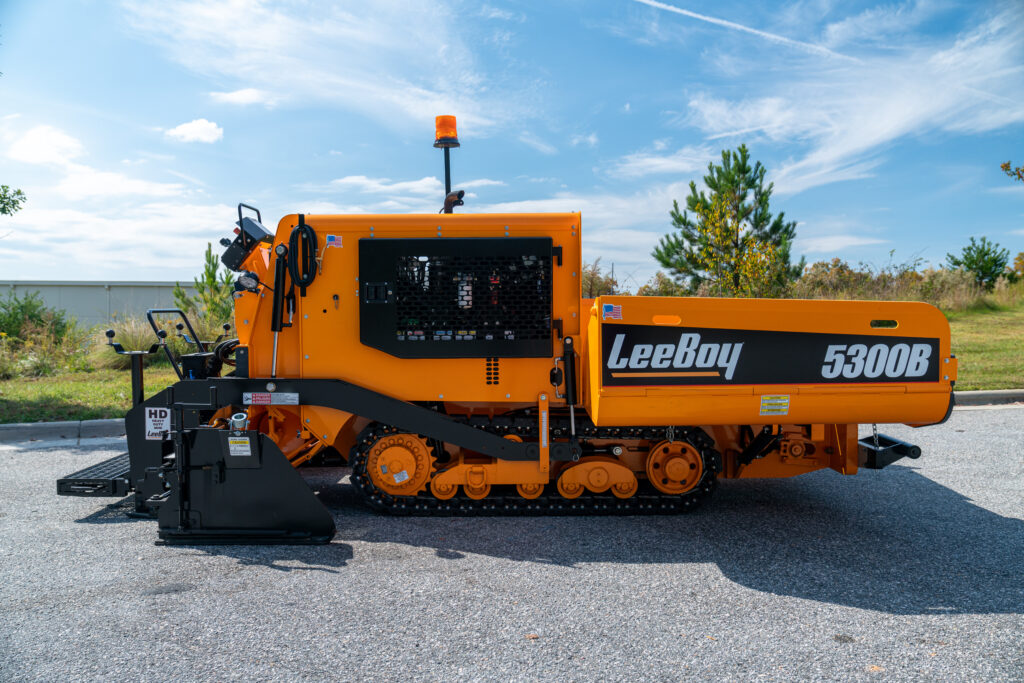

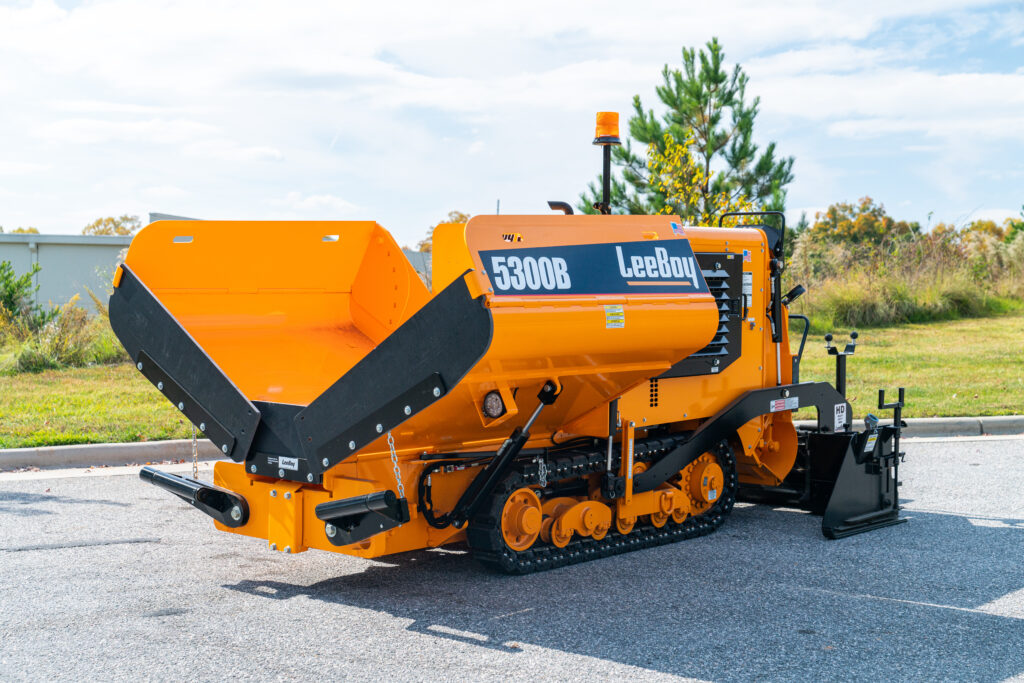

LeeBoy 5300B Asphalt Paver

Name: LeeBoy 5300B Asphalt Paver - Enduraquip
SKU: 5300B

One of the industry’s most versatile and quietest compact pavers, the LeeBoy 5300B asphalt paver material hopper allows several variations, one side up or both sides down to allow asphalt to be fed from a shuttle buggy or skid steer or dump truck. While allowing for the ability to fit into tight spaces. By maintaining a large capacity material hopper and ultra-efficient material management system, the paver provides the operator with precise control of the head of material at the main screed and hydraulic extensions. This unique design is ideal for the smallest of paving jobs to include walking trails, cart paths, sidewalks, trenches, mill, patch and repair work.

Request a Quote

SKU: 5300B Category: Paver Tags: 5300B, LeeBoy, Paver Brand: LeeBoy

Description
Technical Specs

Description

Operator’s Controls
Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system
vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
Dash panel includes augers, screed extension, cut-offs, screen, hopper wings, conveyor, grade controls, steering lights
User-friendly, icon-based CAN Bus controls
Backlit keypad with LED indicator lights

Dimensions
Length: 15’ 5”
Width: 4’ 5” transport
9’ 7” hopper wings down
Height: 5’ 9”
Total Weight (with screed): 12,700 lbs

Engine
Kubota turbocharged diesel
Tier 4 Final – 64.4 hp (48 kw) @ 2,400 rpm

Capacities
Fuel: 25 gallons
Hydraulic reservoir: 33 gallons
Washdown tank: 5 gallons

Paving Widths
Variable up to 7’

Technical Specs

Weight	12, 700 lbs
Paving Width	4'-7'
Screed Heating	Electric
Hopper Size	7 Ton
Length	15’ 5”
Height	5’ 9”
High/Low Deck	Low Deck
Type of Track	Poly Pad
Steering	Electronic Plus+1
Controls	Electric/Hydraulic
Augers	12”
Seats	N/A
Sonic Augers	Available
Heated End Gates	Available
