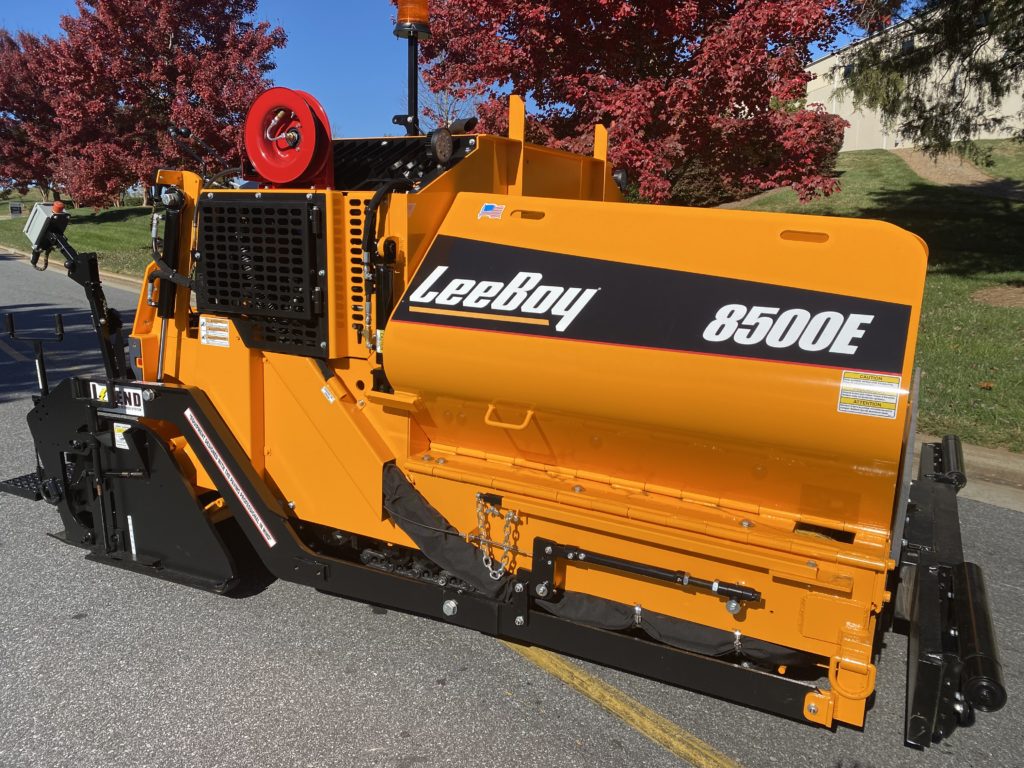

Description
Operator’s Controls
All control levers are on the left side
Right side levers include left and right drive control, right auger, right screed extensions, hopper and cut-offs
Dash slides from left to right
Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
Dimensions
Length: 12’ 8”
Width: 8’ 6” transport
10’ hopper wings down
Height: 6’ 4” with beacon folded down
Total Weight (with screed): 17,640 lbs
Engine
Kubota turbocharged diesel: DOC only. No regen required.
Tier 4 Final – 71hp (53 kW) @ 2,200 RPM
Capacities
Fuel: 23 gallons
Hydraulic Reservoir: 19 gallons
Washdown tank: 7 gallons
Paving Widths
Variable up to 15’
