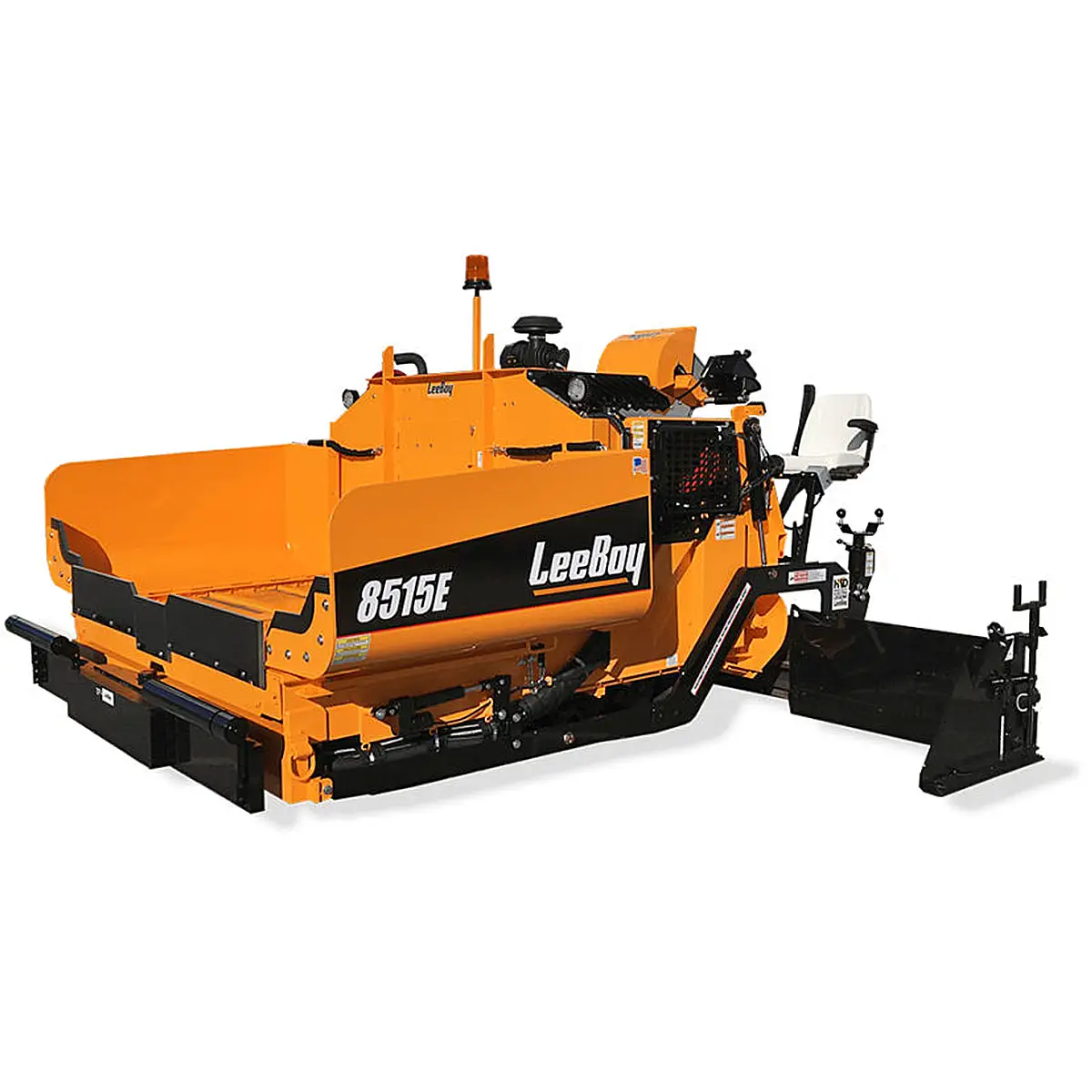

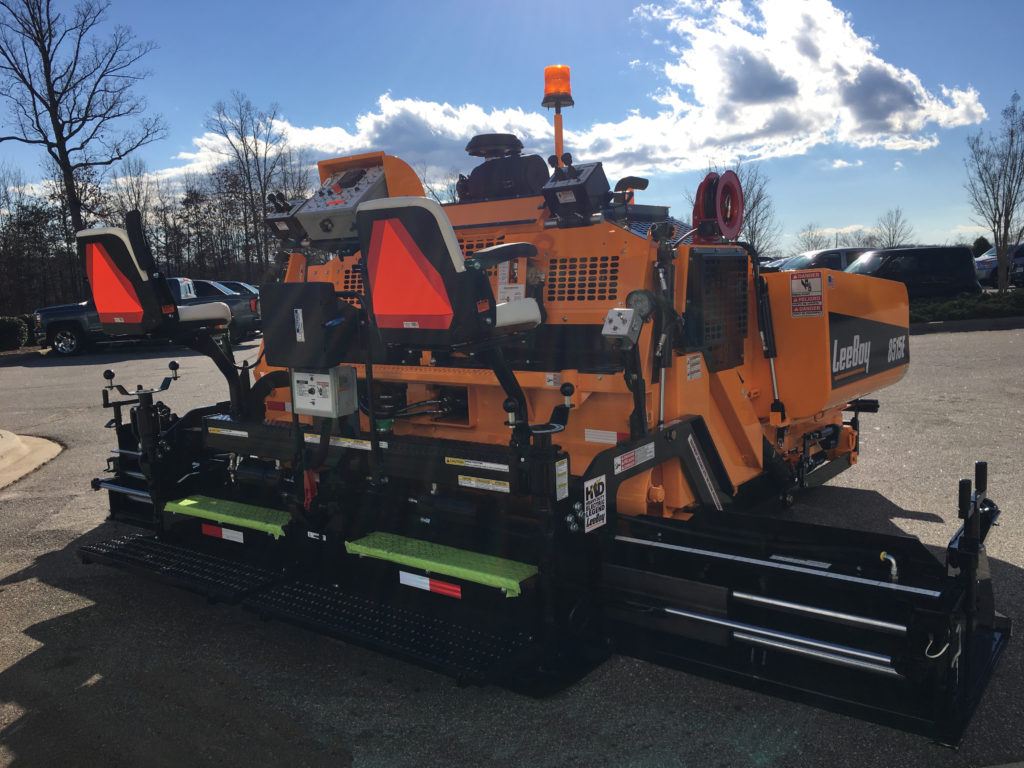

Description
Operator’s Controls
High deck/low deck configuration
Includes dual electronic steer
Dash panel is movable from left to right and includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
Dimensions
Length: 13’ 5”
Width: 8’ 6” transport
10’ hopper wings down
Height: 8’
Total Weight (with screed): 18,460 lbs
Engine
Kubota turbocharged diesel
Tier 4 Final – 74 HP (55.4 kW) @ 2,200 rpm
Capacities
Fuel: 23.5 gallons
Hydraulic: 19 gallons
Washdown tank: 7 gallons
Paving Widths
Machine has variable paving widths up to 15’
