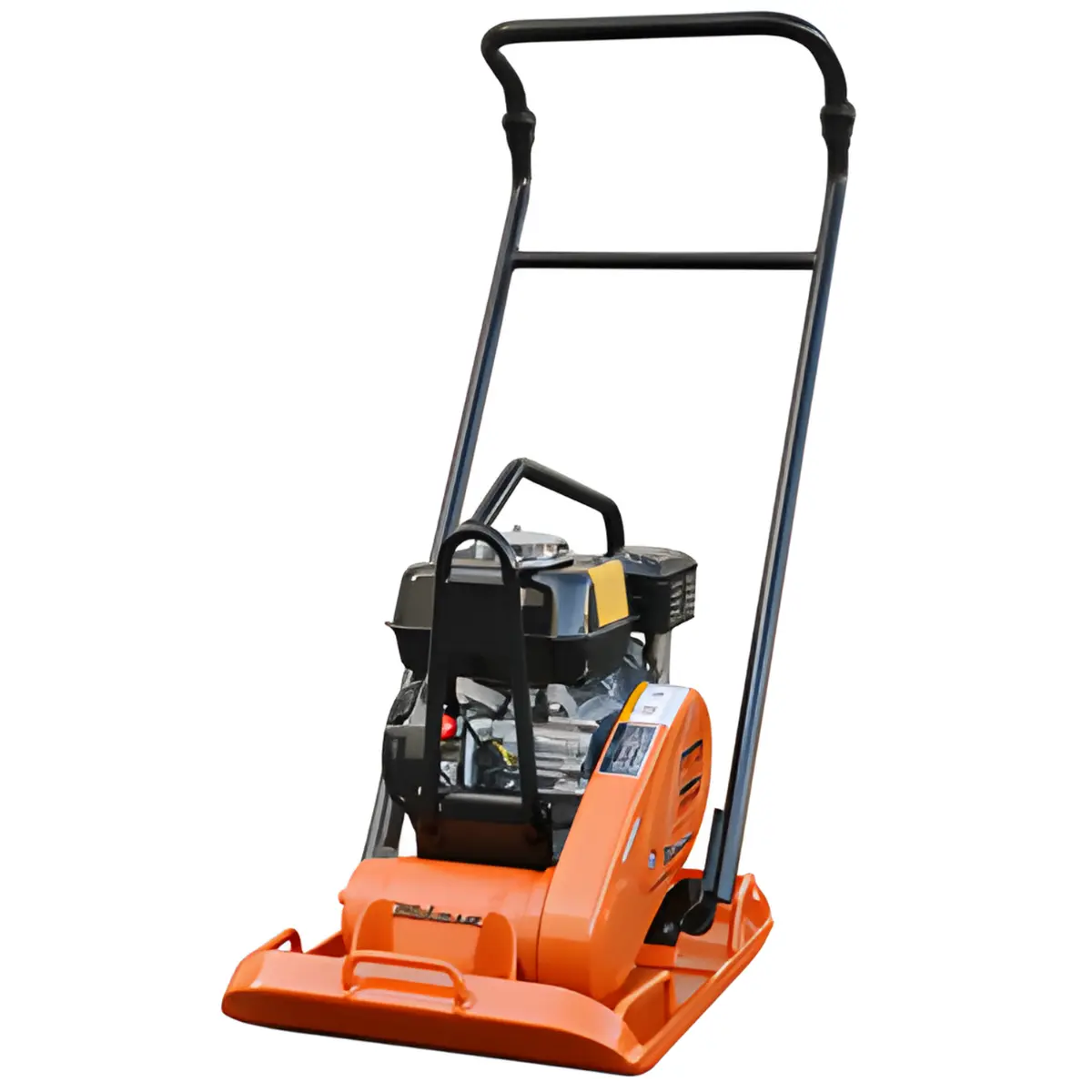

MultiQuip MVC82VH Plate Compactor

Recognized as the industry standard for compacting granular soils and asphalt.
– Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
– Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
– Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
– Solid, high-strenght steel base plate for durability.
– Tubular steel roll bar protects engine components and provides central lifting point.
– Sealed belt cover keeps dirt and rocks out extending belt life.
– Open base plate design makes for easier removal of dirt and rock build-up.
– Cog-tooth belt drive enables longer life compared to conventional V-belts.
– Front mounted exciter assembly allows for easy service access.
– Optional, tool-free removable water tank to facilitate refilling of 11.6 quart resevoir.

SKU: MVC82VH Category: Tags: , , Brand:

Description

Unit Specifications
Centrifugal Force: 3080 lbf / 13.7 kN
Exciter Speed: 5600 VPM
Plate Size: 17.7 x 22.4 in / 450 x 570 mm
Max Forward Speed Per Min.: 82 ft / 25 m
Fuel Consumption / Per Hour: 0.31 gal / 1.17 L

Dimensions & Weights
Overall Length: 36 in / 914 mm
Overall Width: 17.7 in / 450 mm
Overall Height: 39.5 in / 1003 mm
Shipping Dimensions: 33.5 x 18.5 x 27 in / 851 x 470 x 686 mm
Operating Weight: 175 lb / 79 kg
Shipping Weight: 200 lb / 91 kg
