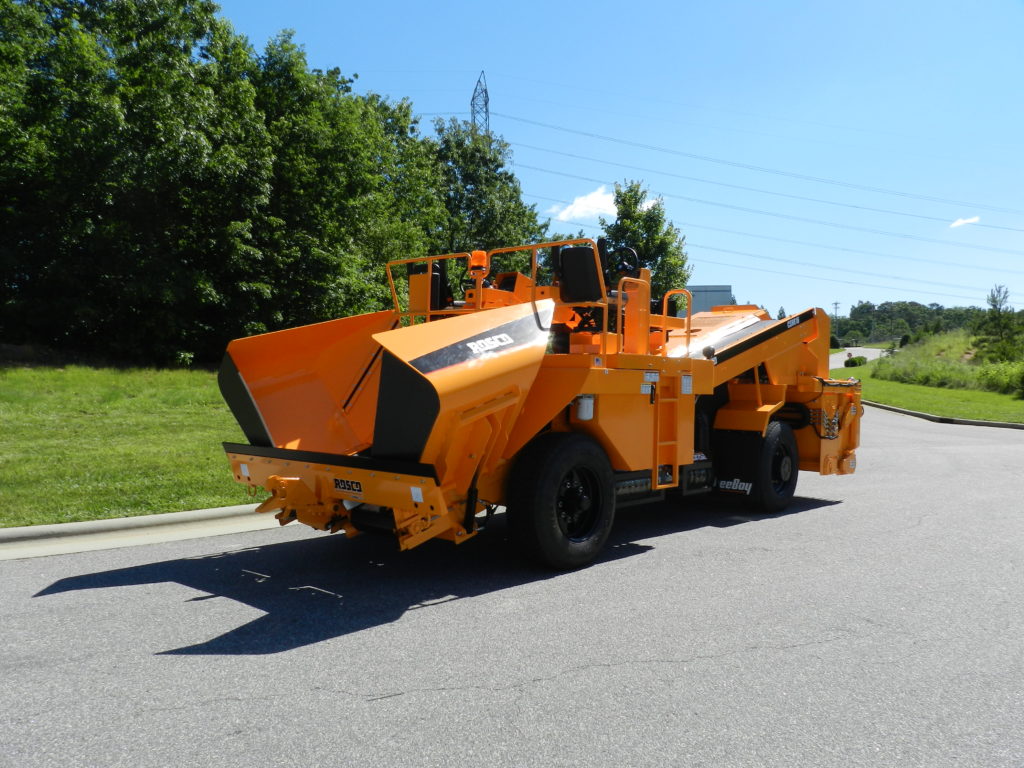

Rosco CSV Chipspreader

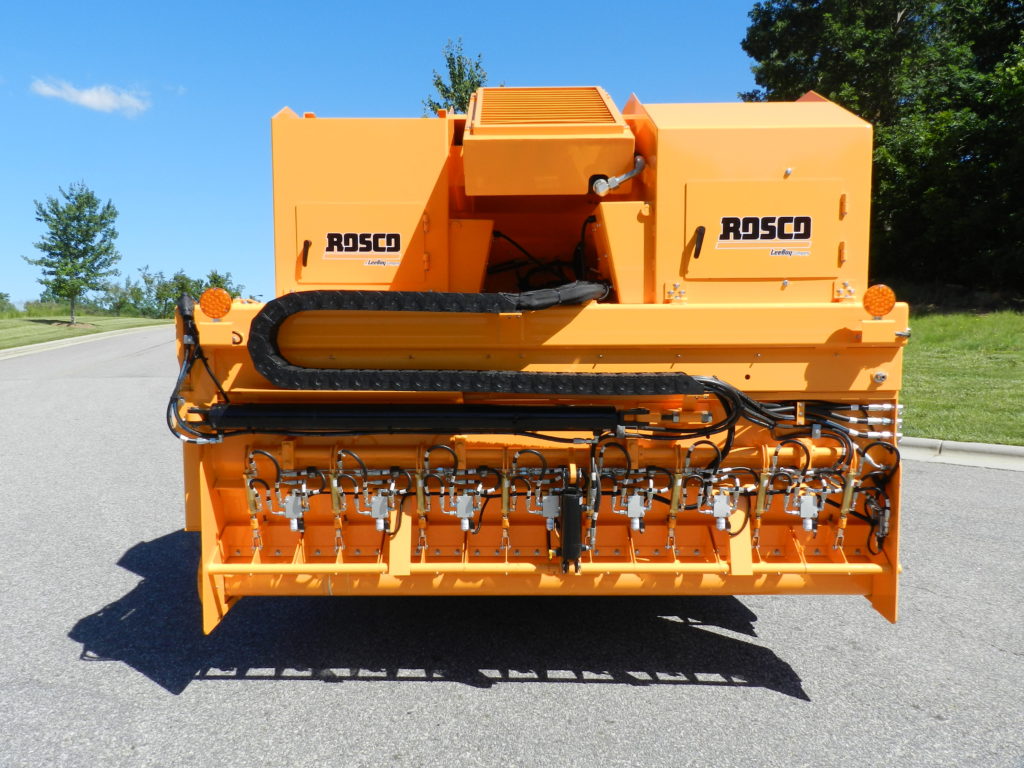

Rosco CSV Chipspreader - Image 2

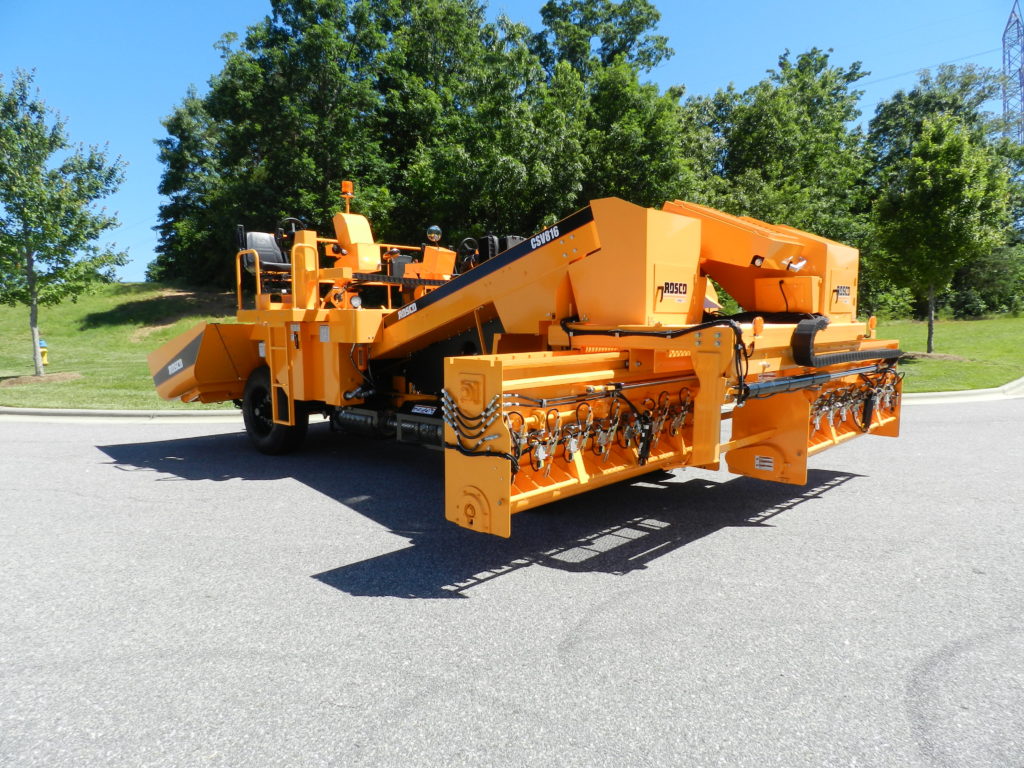

Rosco CSV Chipspreader - Image 3
Rosco CSV Chipspreader - Image 4

Rosco CSV Chipspreader

Serving as the most advanced chip spreader in our product line, the Rosco CSV continues our company’s commitment to the preservation industry. The variable width spread hopper and smaller overall footprint provide flexibility that enables chipping within confined areas such as urban routes. Special consideration has been given to the operator’s comfort, safety and visibility making this equipment extremely enjoyable to operate. Given the raw power of this unit, the quality of the finished product remains the same even in areas with rough, steep terrain.

Request a Quote
SKU: CSV Category: Tags: , Brand: ,

Description

Technical Specifications
Aggregate Delivery

Variable Width

Dimensions

Overall Length: 25’ 10”
Overall Width: 8’ 6”
Overall Height: 8’ 8”, beacon retracted
Wheelbase: 12’ 10.5”
Turning radius: 26’ outside turn radius
22’ 3” inside turn radius

Weight

23,720 lbs (10,759 kg)

Engine

Tier 4 Final, 275 hp (205 kw) Cummins diesel turbocharged engine
Proportional hydraulic fan drive: maximize hp, reduce noise and automatic cleanout
Fuel filter, fuel water separator filter
12 volt negative ground system
Dual 1000 amp, 12 volt batteries
Dry type dual air cleaner system with indicator
Electrical variable controlled engine throttle
Fuel reservoir: 65 gallons
