Description
Masses
Operating mass (incl. ROPS): 35,942 lb
Operating mass (incl. Cab): 36,376 lb
Module mass (front/rear): 24,100 lb / 12,200 lb
Max. operating mass: 38,400 lb
Compaction
Static linear load: 286 lb/in
Compaction width: 84 in

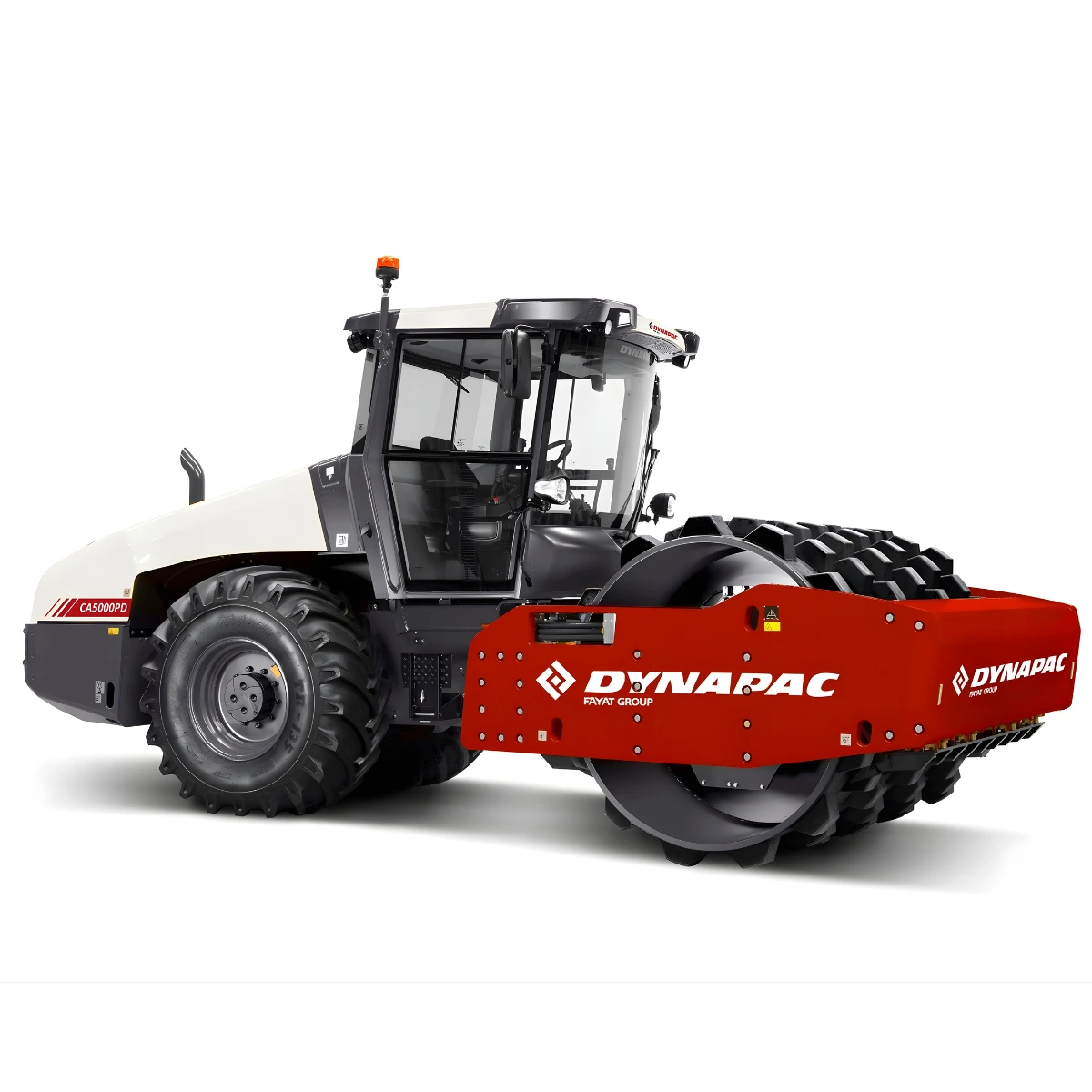

Drum type: Padfoot
Nominal amplitude (high/low): 0.075 in / 0.039 in
Vibration frequency (high/low amplitude, SEISMIC manual mode): 1,740 vpm / 1,800 vpm
Centrifugal force (high/low amplitude): 74,190 lb / 40,470 lb
Number of pads:130 Pad
Height: 4 in
Pad area :22.6 in²
Traction
Speed range: 2 – 7 mph
Tire size (12 ply): 23.1 x 26 TR
Max. theoretical gradeability: 53%
Vertical oscillation: ±9°
Steering angle: ±38°
Engine / Drive
Engine Type: Diesel (Cummins B4.5)
Engine HP: 200 hp
Fuel tank capacity: 67 gal
DEF tank capacity: 8 gal
Hydraulic System
Driving: Hydrostatic
Vibration: Hydrostatic
Steering: Hydrostatic
Brakes
Service brake: Hydrostatic in forward and reverse lever
Parking / Emergency brake: Failsafe multidisc brake in drum gearbox and rear axle
