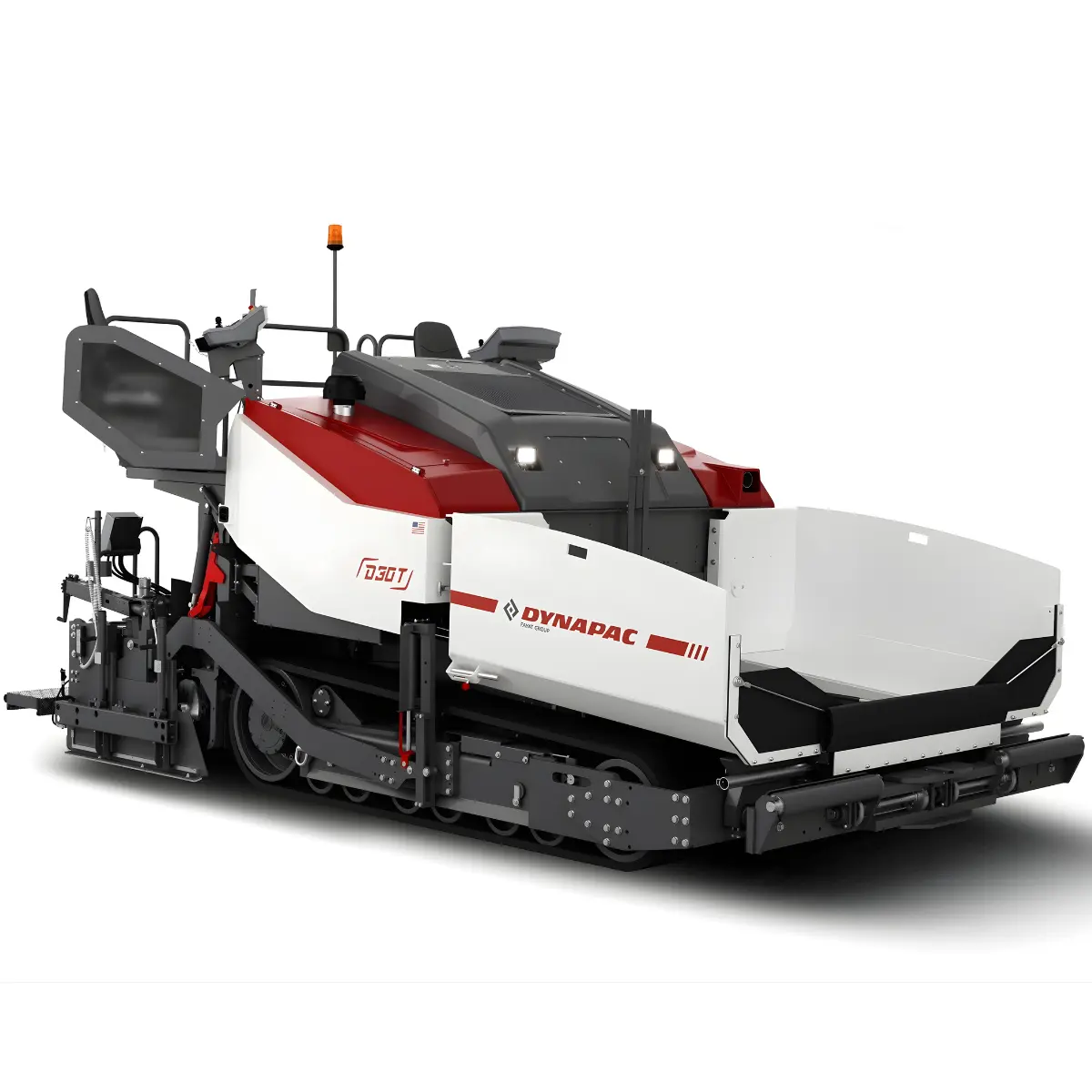

Dynapac D30T Highway Paver
From interstate highways and county roads to large commercial jobsites, Dynapac’s latest generation highway-class pavers offer optimal solutions for high-quality paving. The D30T is designed and built in the USA with a focus on North American customers’ success. Its high-performance tractor design emphasizes simplified smart paving techniques and maximum uptime. Combined with the award-winning Mat Master screeds, the D30T delivers the highest paving quality results.
Operator’s Controls
Dual swing-out operator consoles. Two fully functional tractor dashboards with display. iTrack system providing excellent traction and reliability. Simplified smart paving with Dynapac PaveManager. Innovative solutions for non-stop paving (Safe Impact, Fail Safe heating). Designed and built in the USA for the North American market.
Dimensions
Length: 264 in
Width: 133 in transport
Basic width: 10 ft
Max working width: 30 ft
Height: 120 in transport
Tractor weight: 37,300 lbs
Total weight (with Mat Master screed): 45,200 lbs
Engine
Model: Cummins QSB 6.7
Rated power: 225 hp @ 2,200 rpm
| Axle Track (A) | |
|---|---|
| Width, Max (B1) | |
| Width, Standard (B2) | |
| Width, Center of Tracks | |
| Height, Max (H1) | |
| Height, Transport (H2) | |
| Height, Dumping (H3) | |
| Length (L1) | |
| Length, Hopper (L3) | |
| Track Width (C1) | |
| Weight | |
| Tractor Weight | |
| Engine Model | |
| Rated Power | |
| Emissions | |
| Electrical System | |
| Fuel Tank Capacity | |
| Type of Track | |
| Track Length | |
| Drive | |
| Steering | |
| Paving Speed | |
| Transport Speed | |
| Conveyor | Dual bar feeder, 2 x 22.25 in, independent proportional speed control, reversible |
| Conveyor Control | |
| Augers | |
| Screed Model | |
| Basic Screed Width | |
| Max Screed Width | |
| Screed Heating | |
| Compacting Elements | |
| Controls |
