Rosco NV55 Broom
Rosco NV55 Broom - Image 2
Rosco NV55 Broom - Image 3
Rosco NV55 Broom - Image 4

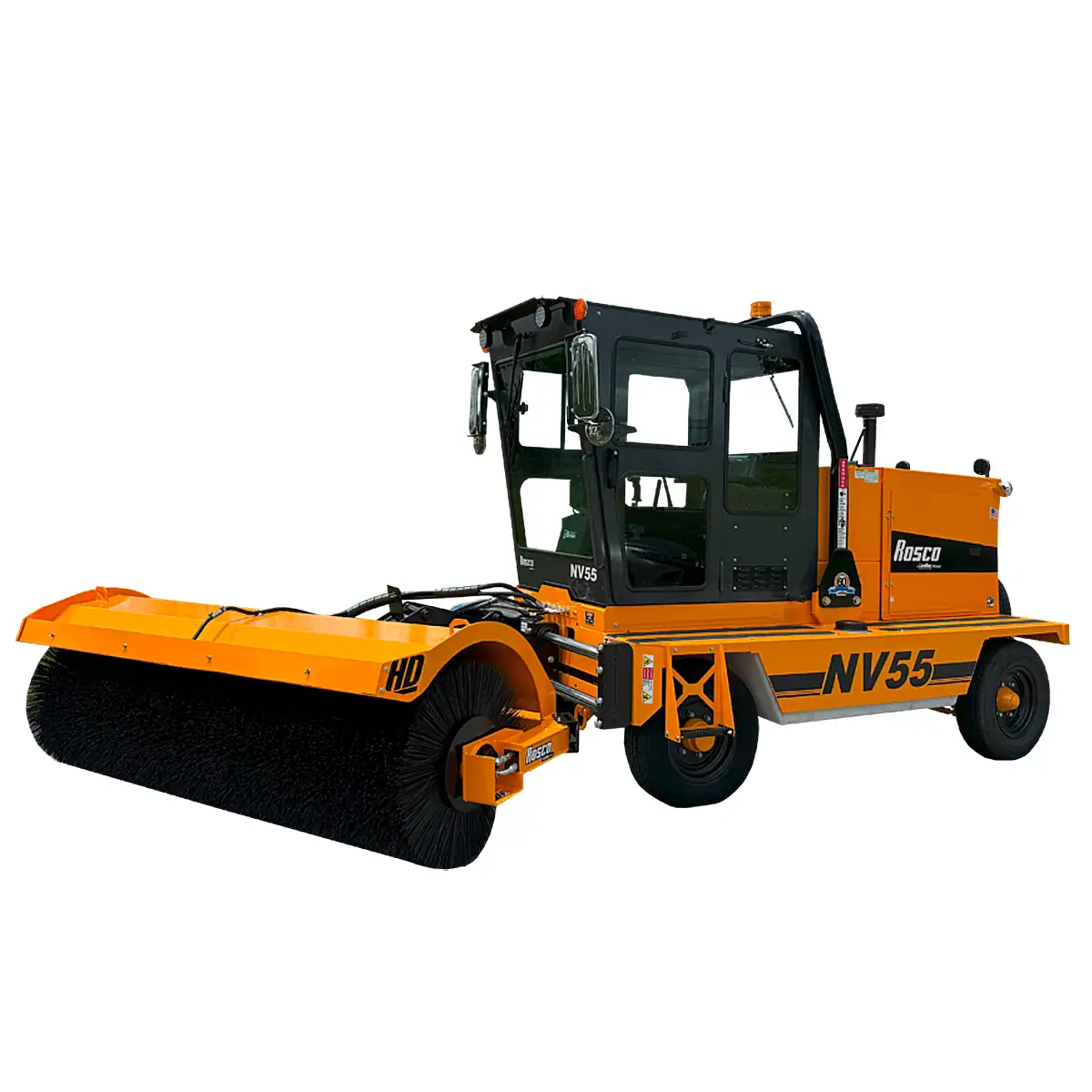

Rosco NV55 Broom

The broom for professionals, the NV55 offers many advantages linked to simple operation and superior sweeping action.  The multi-functional joystick control lever combined with fingertip controls provide precision movement during operation.  The standard configuration features wrap-around windows that give the operator remarkable visibility while residing in the comfortable fully-enclosed cab.  Requiring only one person, the quick-change core system permits the replacement of a brush in minutes limiting downtime.

Request a Quote
SKU: NV55 Category: Tags: , , Brand: ,

Description

Technical Specifications

Brush Location
Front-Mount Brush Location

Brush
Joystick control
Variable down pressure and speed control
Speed: 160 rpm max, variable by dial or engine speed
Drive mechanism consists of direct hydraulic motor enclosed in broom core
Quick change brush system
Filter: tube type, poly, 32” diameter, 7’ 6” long
Sweep angle: 30⁰, left or right standard (50⁰ w/side shift option)
Speed: 160 rpm max, variable by engine speed

Dimensions
Length: 15’ 6”
Width: 7’ 9” no tilted
Height: 9’ 1”
Wheelbase: 7’ 3”
Turning radius, inside: 4’ 2”
Turning radius, outside: 13’ 4”
Total weight: 5,700 lbs w/o water
6,900 lbs w/ water

Engine
Tier 4 Final 74 HP (55 kW) Max @ 2,500 RPM Hatz diesel 4H50TIC
Air cleaner: Rotary pre-cleaner
Electrical system: 12 volt system, alternator and battery
Fuel reservoir: 30 gallons
