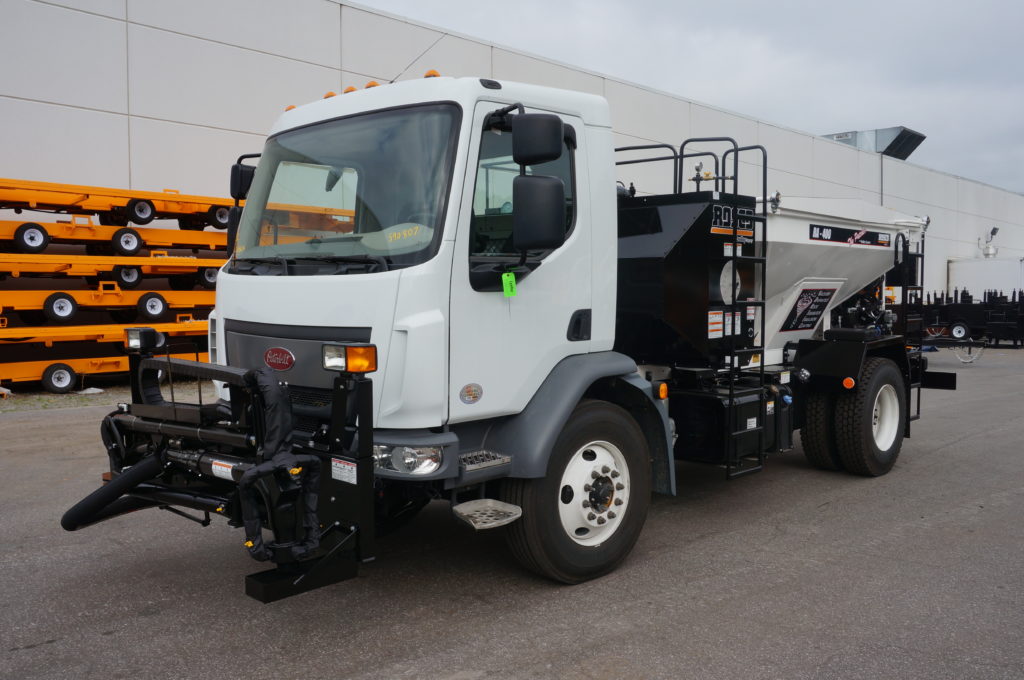

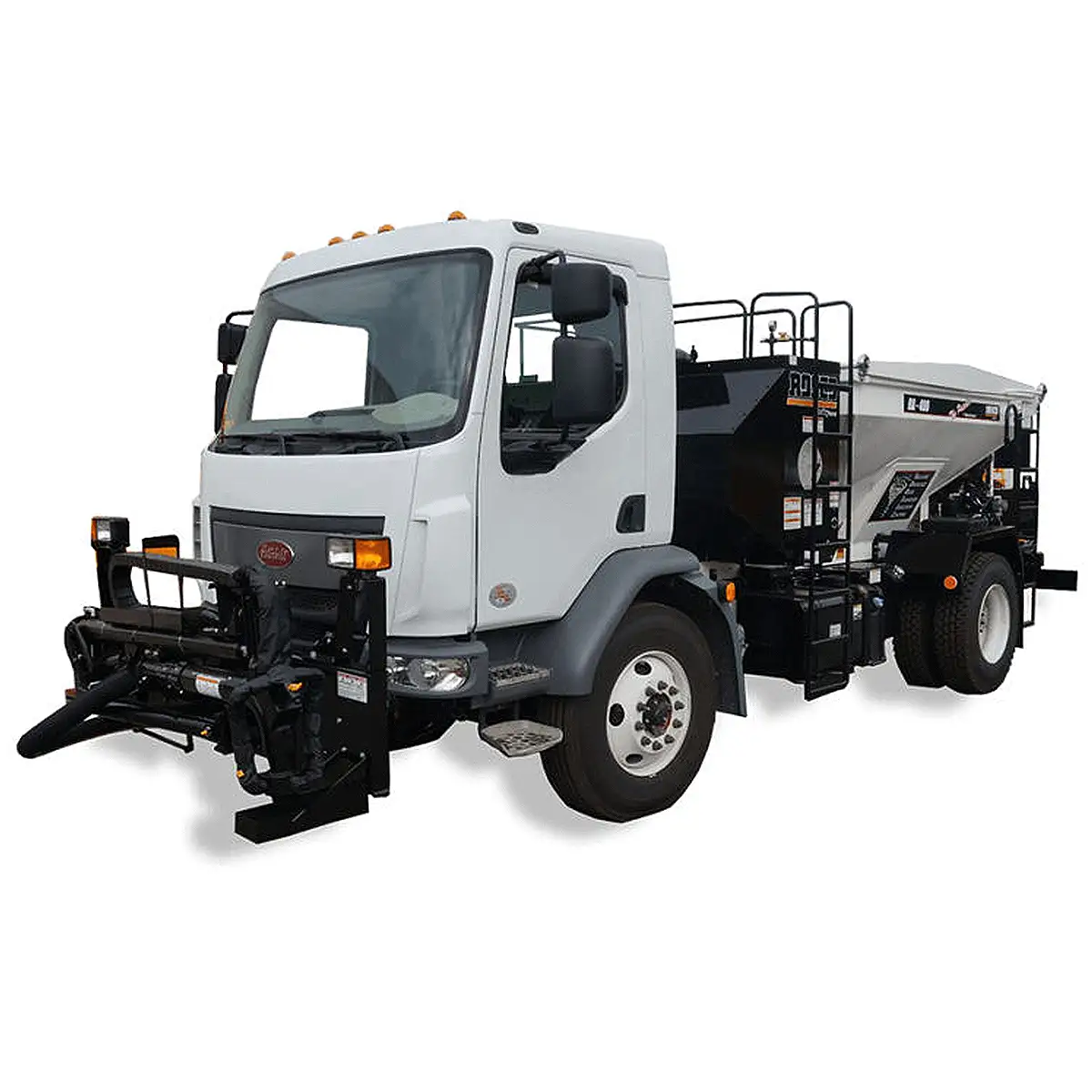

Technical Specifications

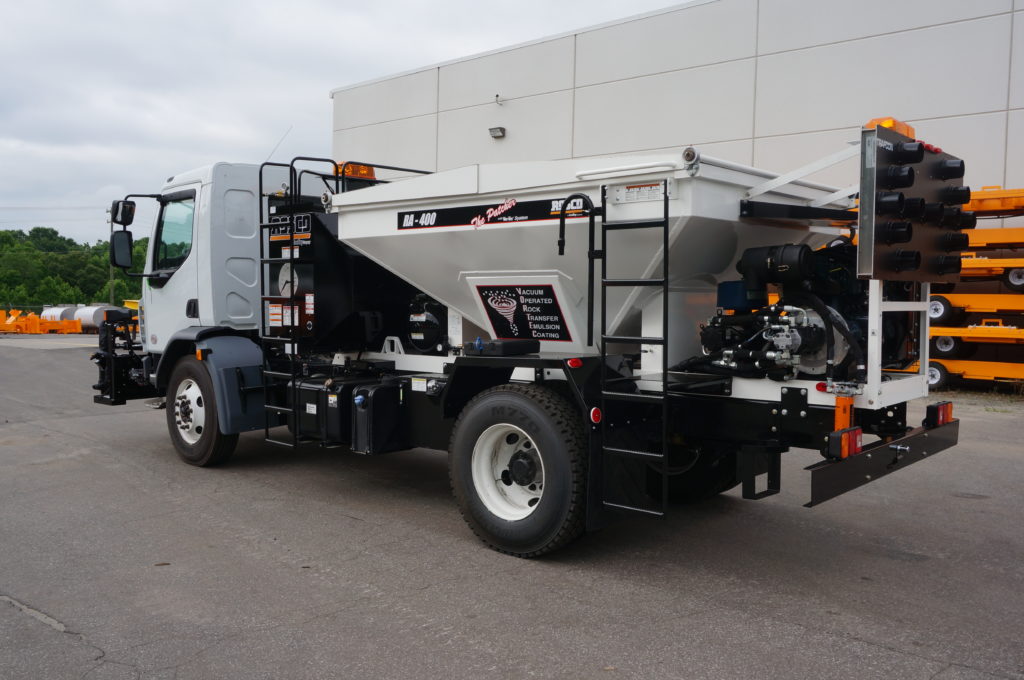

Aggregate System
Low profile, 5 cubic yard hopper, or 11,000 lbs
Rectangular welded 10’ 3” x 7’ aggregate hopper
In-cab controlled vibration system
Dual electric over hydraulic activated hopper lids, rear access open/close swtich
Cab controlled adjustable, feed slide gate meters aggregate flow
System will accept aggregates up to .75” (19 mm)
Plus+1 system store settings: rock flow, emulsion flow and air flow
VORTEC: Vacuum Operated Rock Transfer Emulsion Coating system
– System utilizes no mechanical or moving parts to move aggregate
– Ease of access to clean and service the slide gate and sub systems
– Conveyors and/or paddle feeders are NOT acceptable
– Venturi nozzle with cleanout

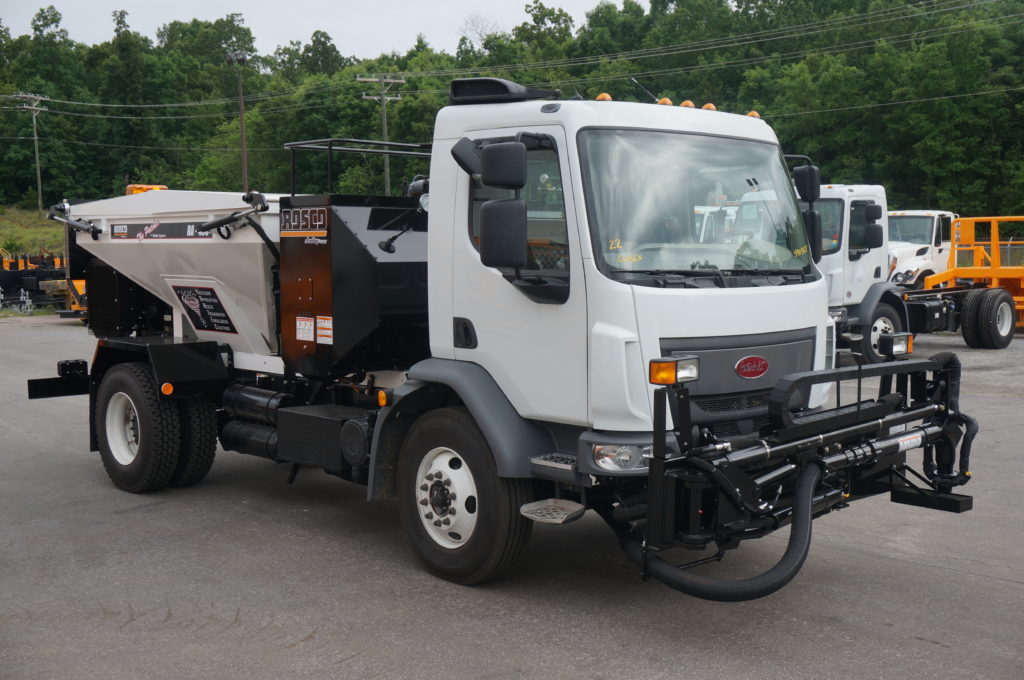

Dimensions
Length: 28’ with boom retracted
38’ 5” with boom fully extended
Width: 8’ 6”
Height: 10’
Weight: 18,000 lbs with standard chassis
Operator’s Controls
One person operation from driver’s seat
All patching functions are in the cab, including cleaning, tack coating, patching and dust coating
LCD display controlled from Plus+1 CAN Bus system in cab monitors boom location, blower speed, rock and emulsion flow, hydraulic temperature, emulsion level and system faults
Single joystick controls: Boom swing, extend/retract and push button for up/down
Push buttons operate: Blow out mode, emulsion on/off, aggregate gate on/off and extension/retraction
Control center includes: Auxiliary engine on/off, blower on/off, blower inc/dec, rock flow inc/dec and emulsion inc/dec
Engine alarm, tachometer, pre-heat, engine start/on/off, rpm min/max
Boom auto stow and override
Vibrator on/off, beacon light switch, hour meter, circuit breakers
